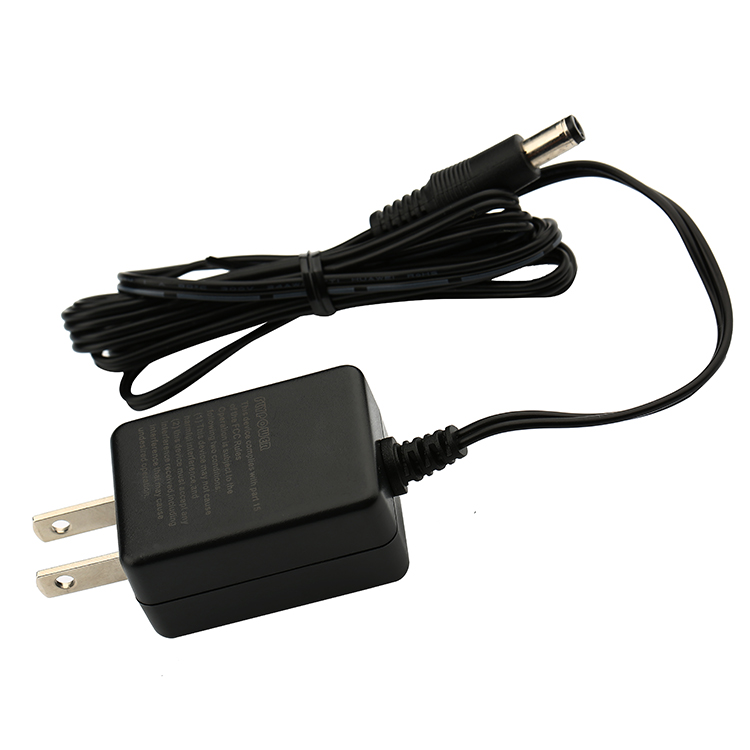

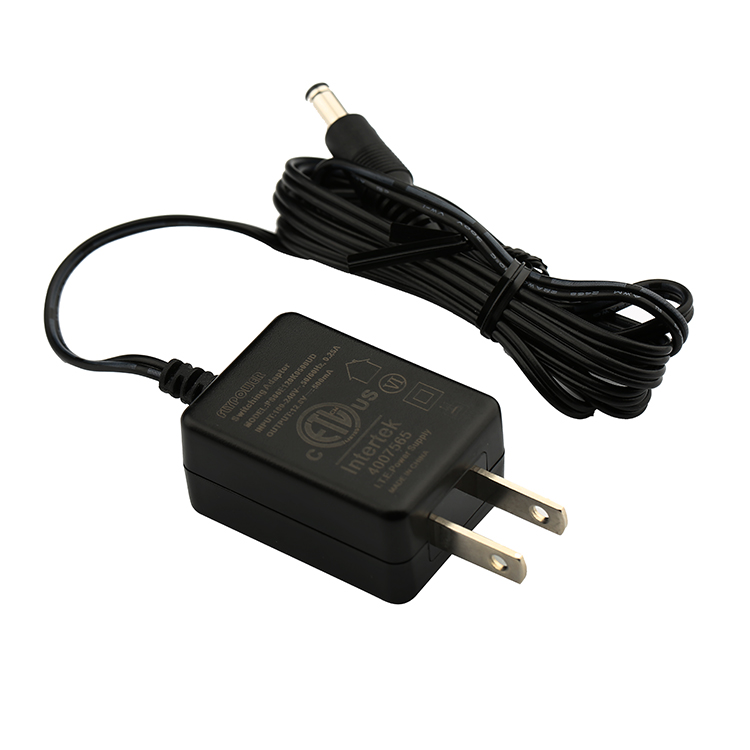

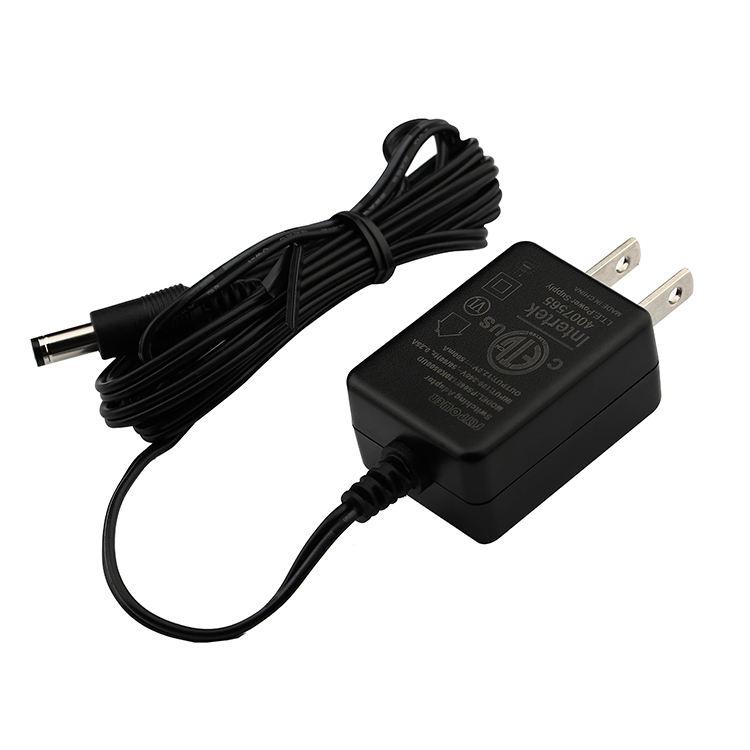

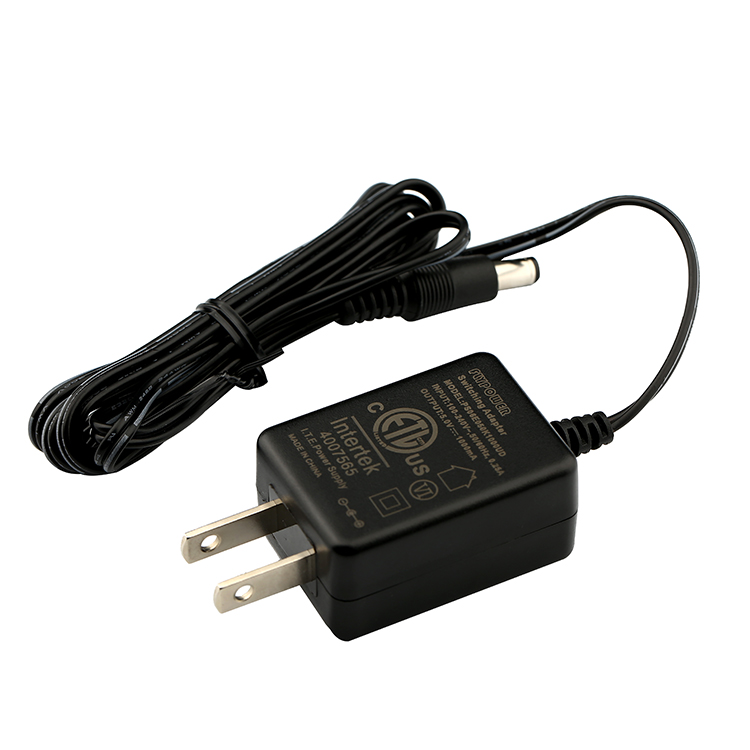

12V0.2A UL power adapter
12V0.2A UL power adapter
Model:PS06E (2.4W)
Efficiency level:VI
Output voltage: 3-24VDC
Output current:0.1-1.2A
Output ripple &noise:200mVp-p max
Safety standard:UL60950
FCC Part 15 Subpart B Class B
J60950-1
Certificate:CB ETL FCC CCC PSE BSMI VI
  1. Details
  2. Parameter
  3. Applications

Features

AC input voltage:AC100-240V 50/60Hz

Input current:0.25A(max)

Output voltage:3-24VDC

Output current:100-1200mA

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:200mVp-p max

Efficiency level:VI

Safety standard:

UL60950

FCC Part 15 Subpart B Class B

J60950-1

Safety Index:

Insulation resistors:50MΩ(at 500VDC)

Over current protection

Short circuit protection

Over voltage protection

Environmental Requirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB ETL FCC CCC PSE BSMI VI

Outside drawing


Features

AC input voltage:AC100-240V 50/60Hz

Input current:0.25A(max)

Output voltage:3-24VDC

Output current:100-1200mA

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:200mVp-p max

Efficiency level:VI

Safety standard:

UL60950

FCC Part 15 Subpart B Class B

J60950-1

Safety Index:

Insulation resistors:50MΩ(at 500VDC)

Over current protection

Short circuit protection

Over voltage protection

Environmental Requirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB ETL FCC CCC PSE BSMI VI

Outside drawing


Mobile phone,barber scissors,router,iPad, desk lamp,baby monitor,breast pump,bluetooth stereo, audio ,medical instrument, beauty instrument,MTD, Pwone, medoudio eqwpnat bluetooth, electromagnetic charger, plant lamp
