Features

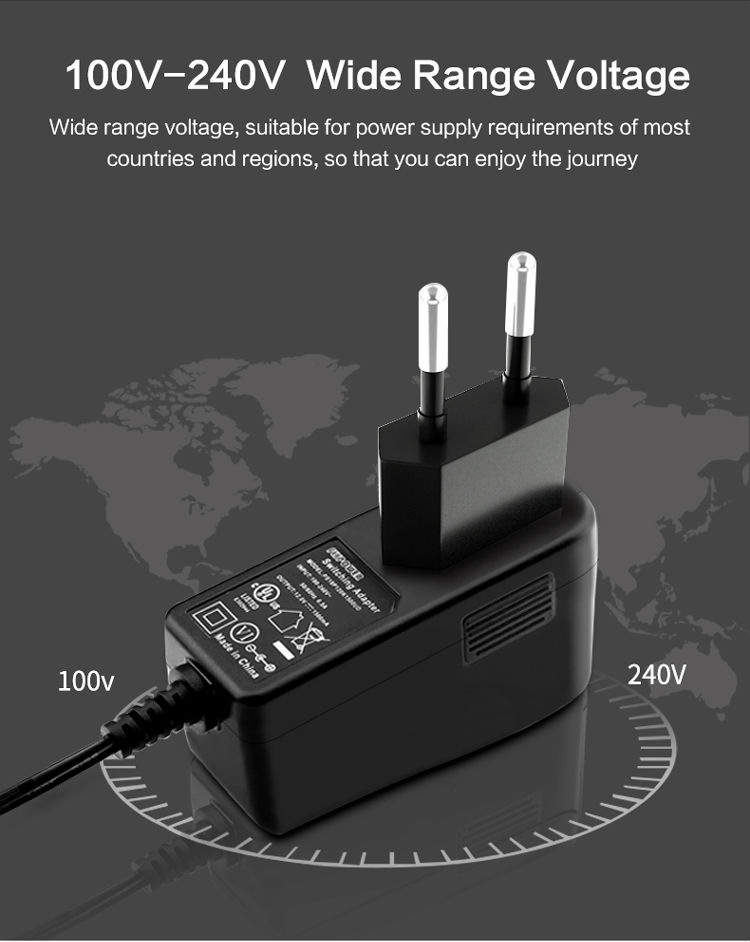

AC input voltage:AC100-240V 50/60Hz
Input current:0.35A(max)
Output voltage:4-6VDC; 9-12VDC;
Output current:100-2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:150mVp-p max

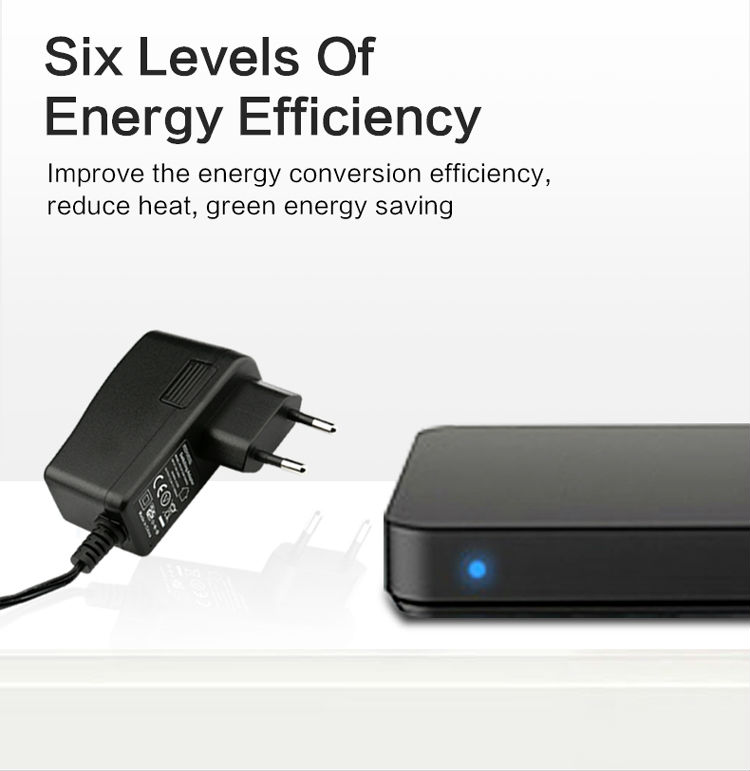

Efficiency level:VI
Safety standard:
UL60950
FCC Part 15 Subpart B Class B
IEC60950, EN60065; EN55032;EN55022
Safety Index:
Insulation resistors:50MΩ(at 500VDC)

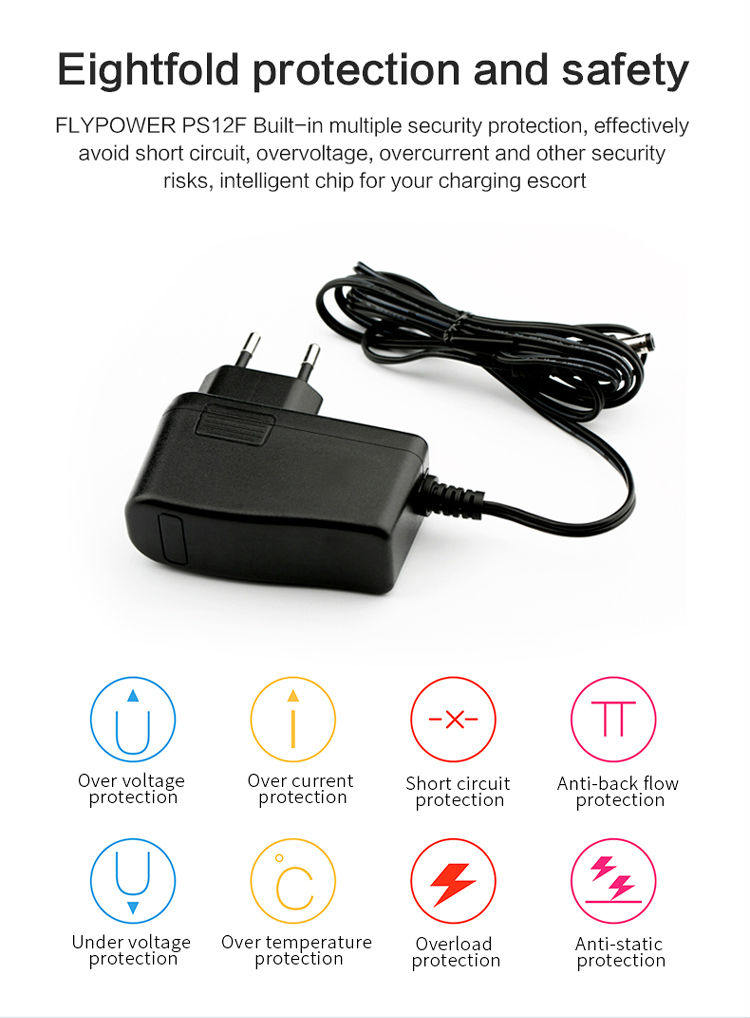

Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC PSE SAA RCM KC BSMI VI

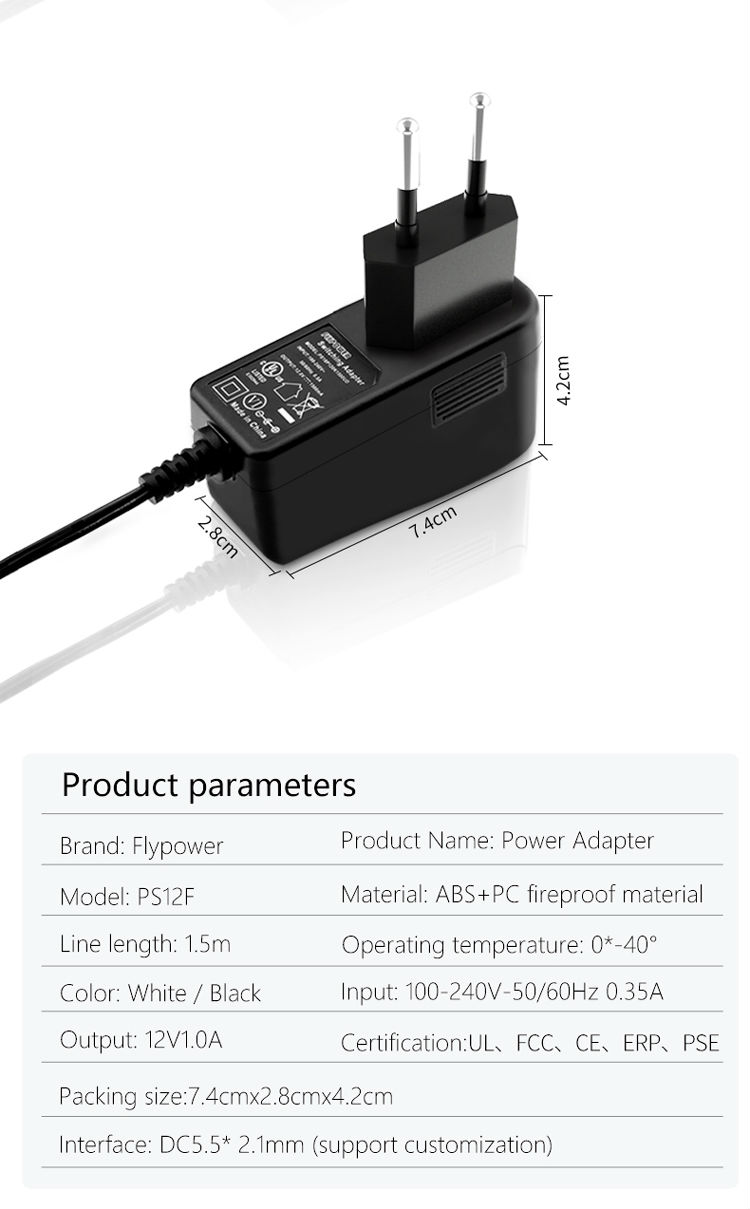

Outside drawing
