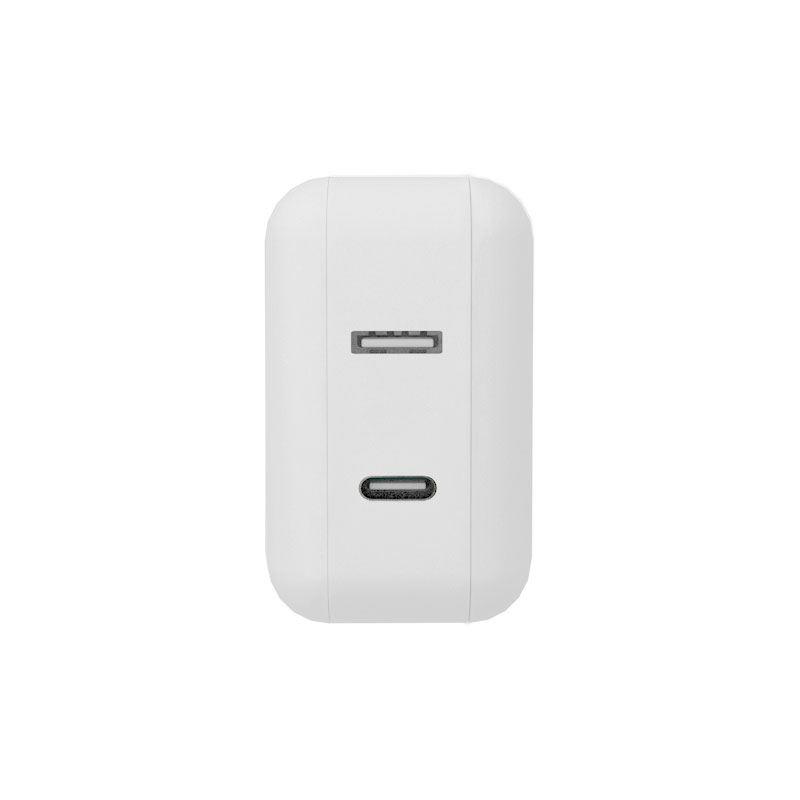

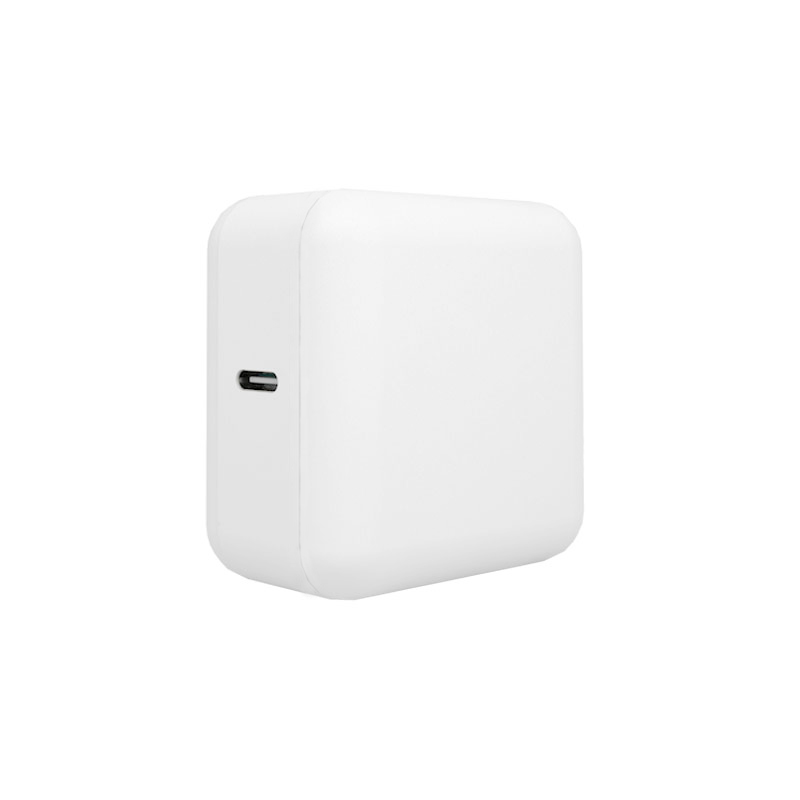

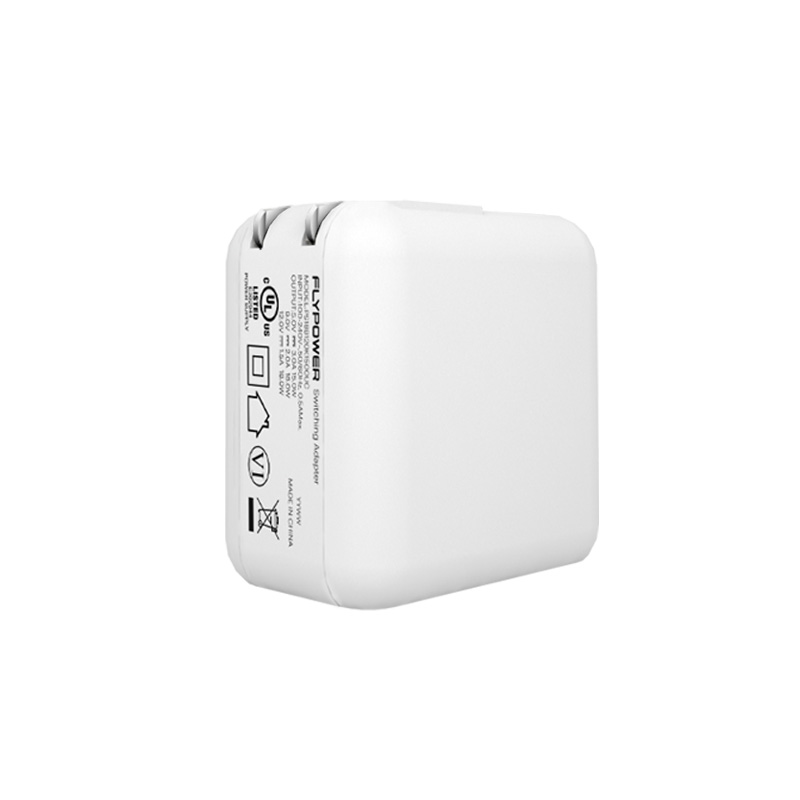

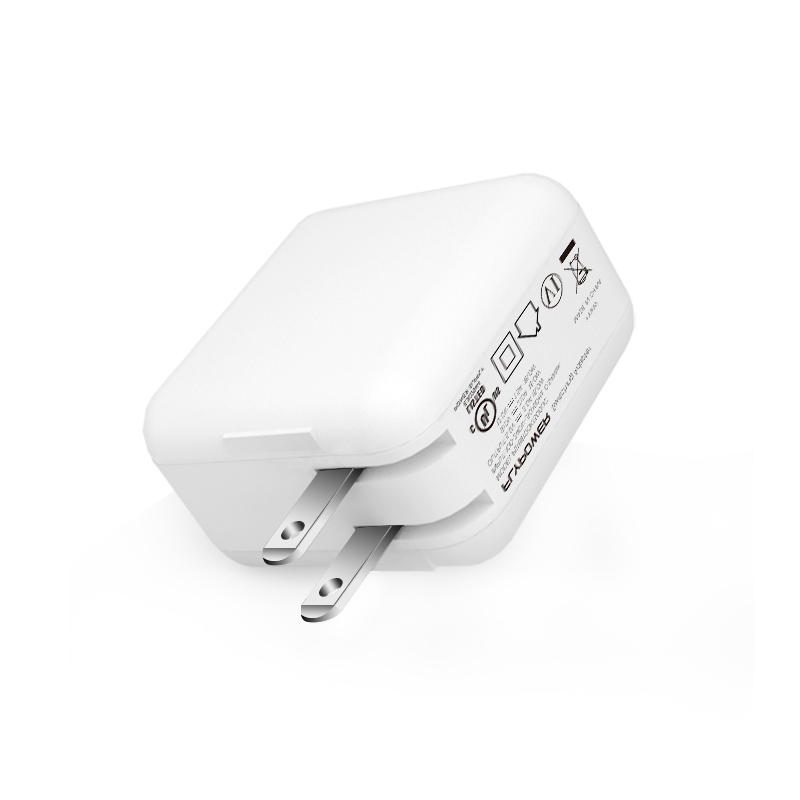

18W dual port PD charger
18W dual port PD charger
Model:PS18B(18W)
Efficiency level:VI
Output voltage: USB+C:5V;USB:5V9/15V;Type-C:5V/9V/15VDC
Output current:USB+C:3A;USB:3A/2A/1.5A;Type-C:3A/2A/1.5A
Output ripple &noise:150mVp-p(max)
Color:White/Black
Size:51*51*31mm(Without pins)
Safety standard:UL60950;UL1310;FCC Part 15 Subpart B Class B IEC/EN60950;EN55032;EN55024
GB4943.1-2011;GB9254-2008;GB17625.1-2012
Certificate:CB CE GS UL FCC CCC PSE KC BSMI VI
  1. Details

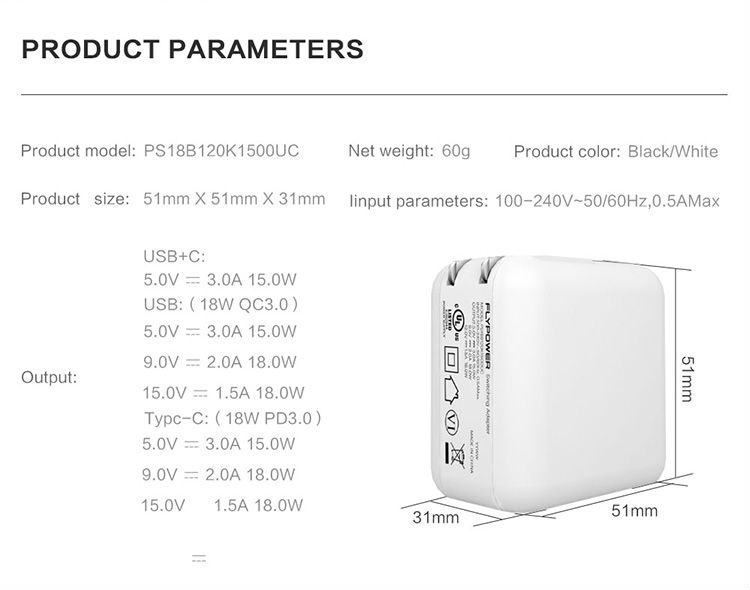

  2. Parameter
  3. Applications


Features

AC input voltage:AC100-240V 50/60Hz

Input current:1.5A(max)

Output voltage:USB+C:5V;USB:5V9/15V;Type-C:5V/9V/15VDC

Outputcurrent:3A;USB:3A/2A/1.5A;Type-C:3A/2A/1.5A

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:150mVp-p max

Efficiencylevel:VI

Safetystandard:

UL60950;UL1310;FCC Part 15 Subpart BClass B

IEC/EN60950;EN55032;EN55024

GB4943.1-2011;GB9254-2008;GB17625.1-2012

Safety Index:

Insulation resistors:≥50MΩ(at 500VDC)

Over current protection

Short circuit protection

Overvoltage protection

EnvironmentalRequirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB CE GS UL FCC CCC PSE KC BSMI VI

Outsidedrawing




Support Apple,Huawei,MI,Samsung,OPPO,VIVO and other brands of mobile phones and IPAD
