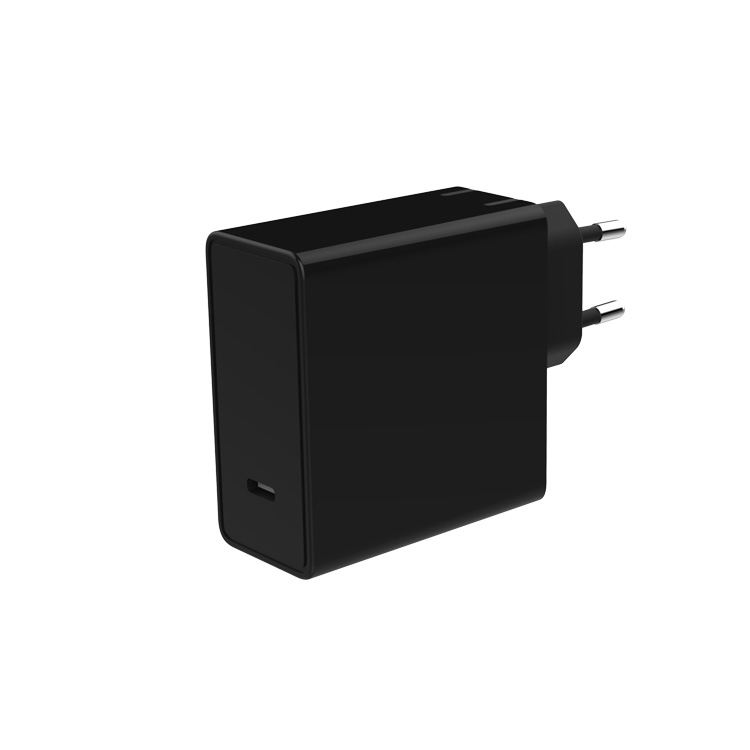

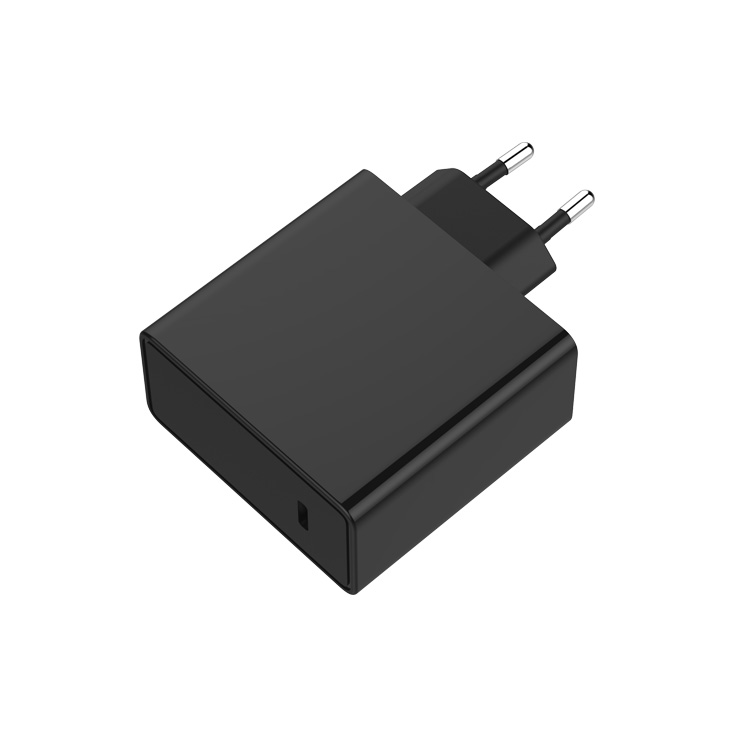

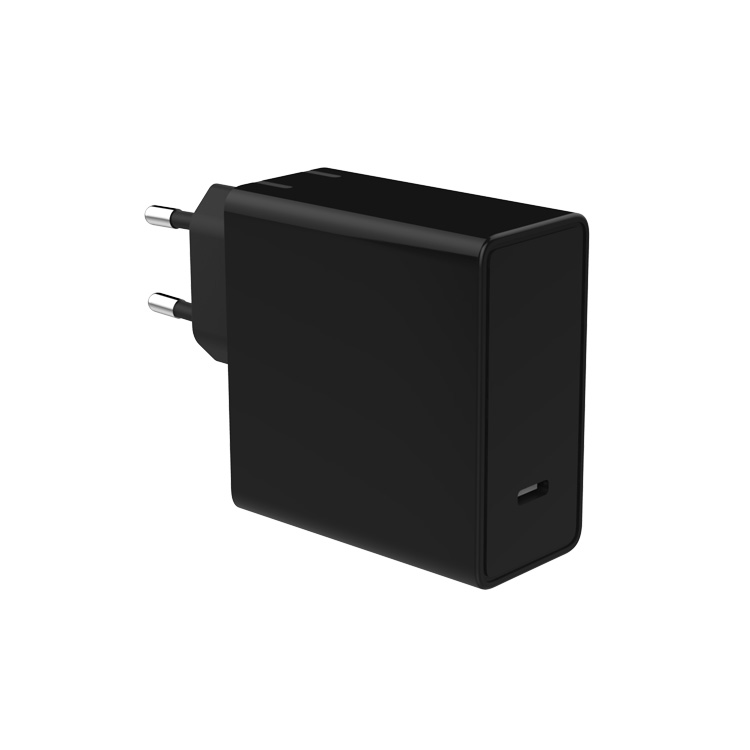

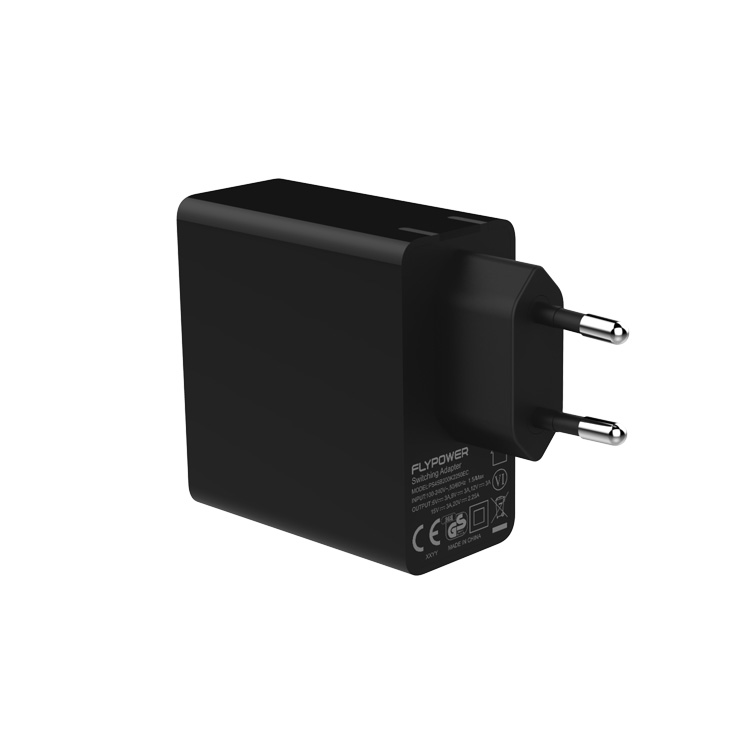

PS60D Type-C Series

Features

AC input voltageAC:  AC100-240V 50/60Hz

Input current:  1.5A（max）

Output voltage:  5V 9V 12V 15V 20V 20.3VDC

Output current:  3000 mA Max

Input inrush current:  80A(max)

Hi-pot test:  3000Vac 10mA 3S

Output ripple &noise:  150mVp-p max

Efficiency level: level VI

Safety standard:

UL60950;FCC Part 15 Subpart B Class B

IEC/EN60950;EN55032;EN55024

GB4943.1-2011;GB9254-2008;GB17625.1-2012

Safety Index:

Insulation resistors:  50MΩ（at 500VDC）

Over current protection

Short circuit protection

Over voltage protection

Environmental Requirements

Operating temperature:  -5°C-+40°C.

Storage temperature:   -20°C-+60°C.

Operating humidity:   30%-85%.

Storage humidity:   10%-95%.

Certificate:

CB CE GS UL FCC CCC PSE KC BSMI VI
