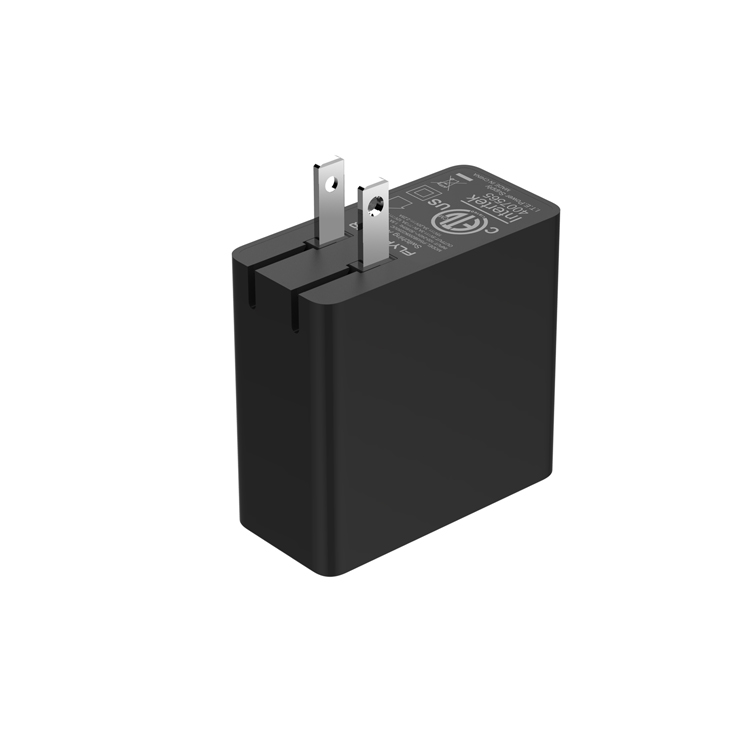

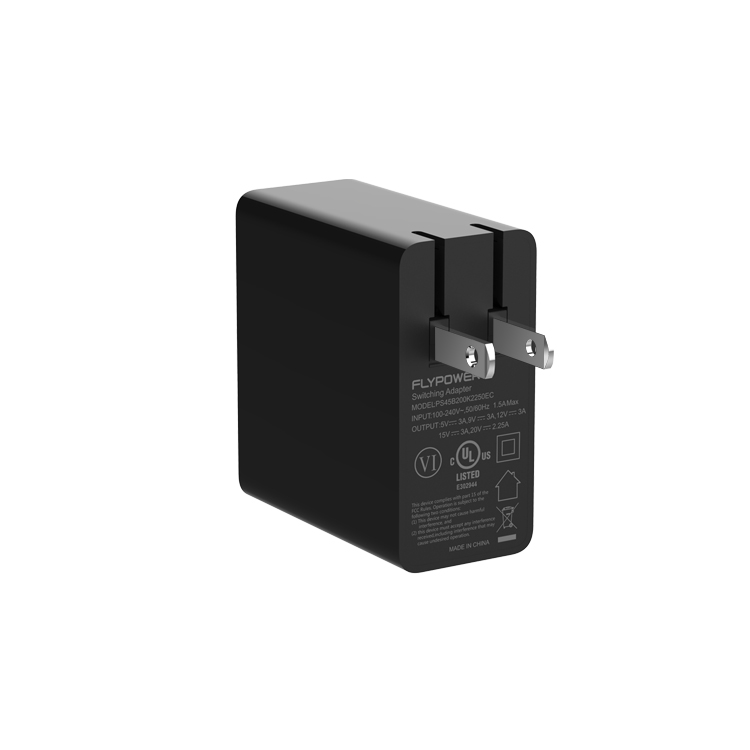

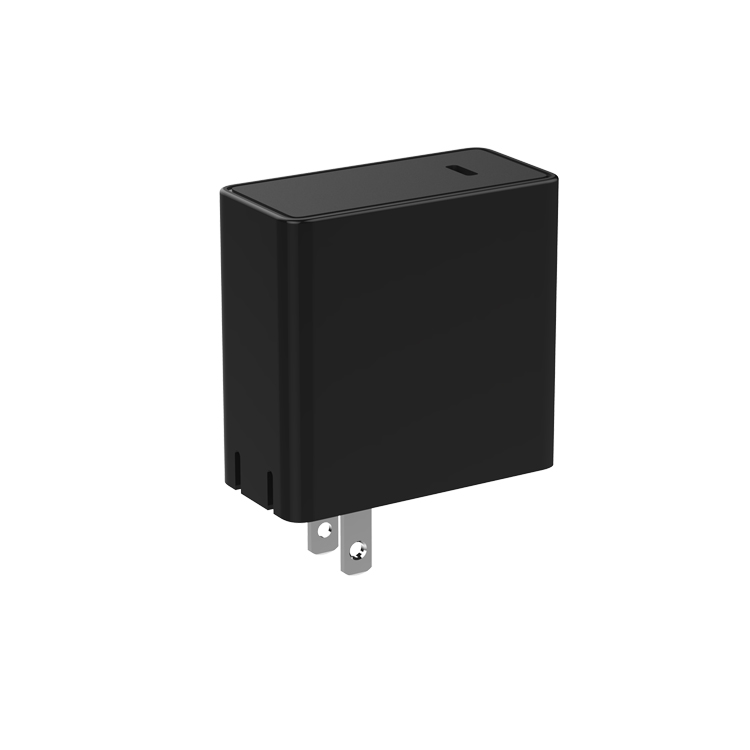

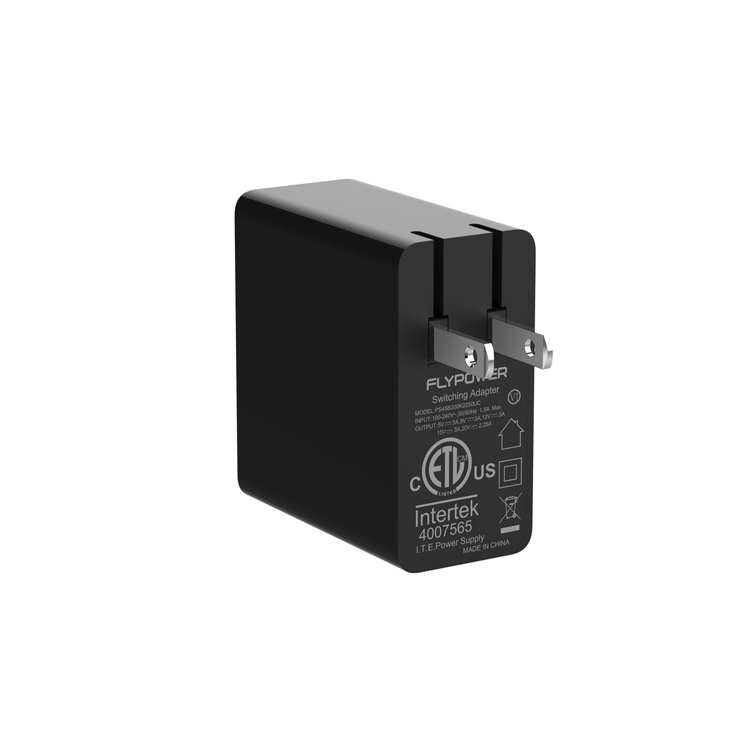

45W UL TYPE-C power adapter
45W UL TYPE-C power adapter
Model:PS45B(45w)
Efficiency level:VI
Output voltage: 5/9/12/15/20VDC
Output current:3A/3A/3A/3A/2.25A(max)
Output ripple &noise:200mVp-p(max)
Safety standard:UL60950;UL1310;FCC Part 15 Subpart B Class B IEC/EN60950;EN55032;EN55024
GB4943.1-2011;GB9254-2008;GB17625.1-2012
Certificate:CB CE GS UL FCC CCC PSE KC BSMI VI
  1. Details
  2. Parameter
  3. Applications

Features

AC input voltage:AC100-240V 50/60Hz

Input current:1.5A(max)

Output voltage:5/9/12/15/20VDC

Outputcurrent:3000/2250 mA Max

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:150mVp-p max

Efficiencylevel:VI

Safetystandard:

UL60950;UL1310;FCC Part 15 Subpart BClass B

IEC/EN60950;EN55032;EN55024

GB4943.1-2011;GB9254-2008;GB17625.1-2012

Safety Index:

Insulation resistors:≥50MΩ(at 500VDC)

Over current protection

Short circuit protection

Overvoltage protection

EnvironmentalRequirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB CE GS UL FCC CCC PSE KC BSMI VI

Outsidedrawing





Features

AC input voltage:AC100-240V 50/60Hz

Input current:1.5A(max)

Output voltage:5/9/12/15/20VDC

Outputcurrent:3000/2250 mA Max

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:150mVp-p max

Efficiencylevel:VI

Safetystandard:

UL60950;UL1310;FCC Part 15 Subpart BClass B

IEC/EN60950;EN55032;EN55024

GB4943.1-2011;GB9254-2008;GB17625.1-2012

Safety Index:

Insulation resistors:≥50MΩ(at 500VDC)

Over current protection

Short circuit protection

Overvoltage protection

EnvironmentalRequirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB CE GS UL FCC CCC PSE KC BSMI VI

Outsidedrawing

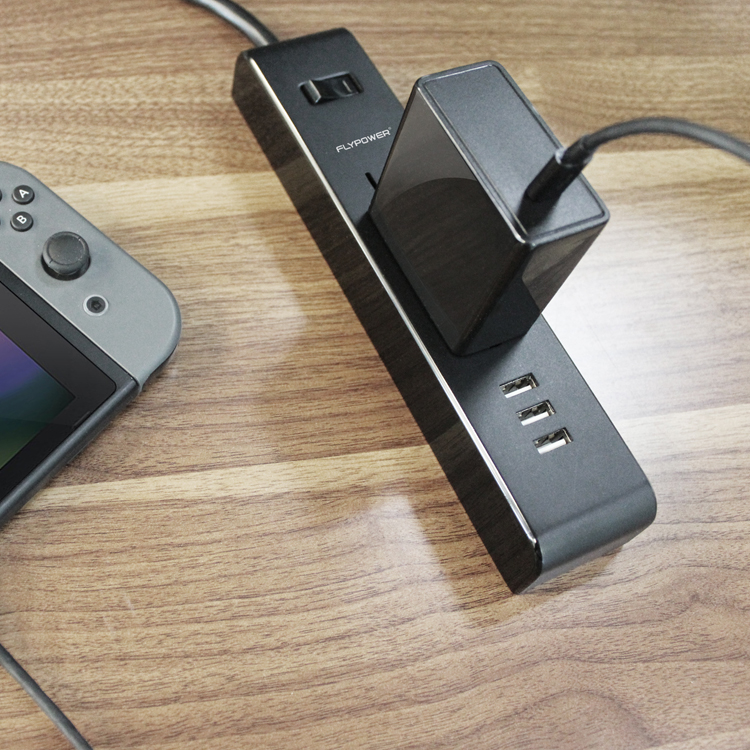

NintendoSwitch,Macbook Pro,Google Book,iPad Air,Dell XPS13,Samsung Notebook,HUAWEIMATEBOOK,XIAOMI Note2/5/4C and more.

Mi NotebookAir 13.3"

One hour andfifty minutes

MacBook12"

One hour andfifty six minutes

Mi MIX

Two hours andthree minutes
