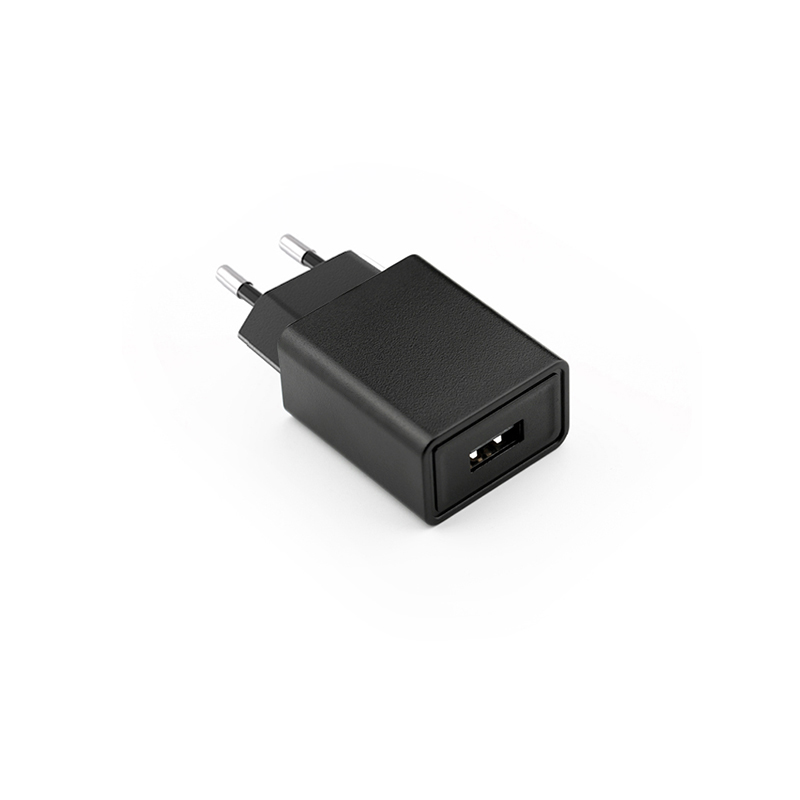

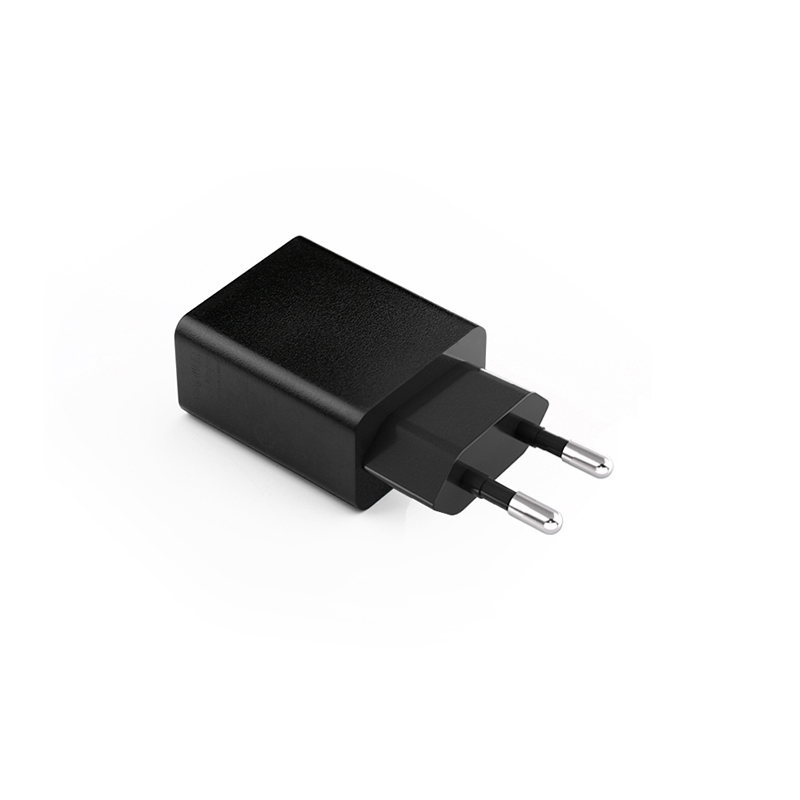

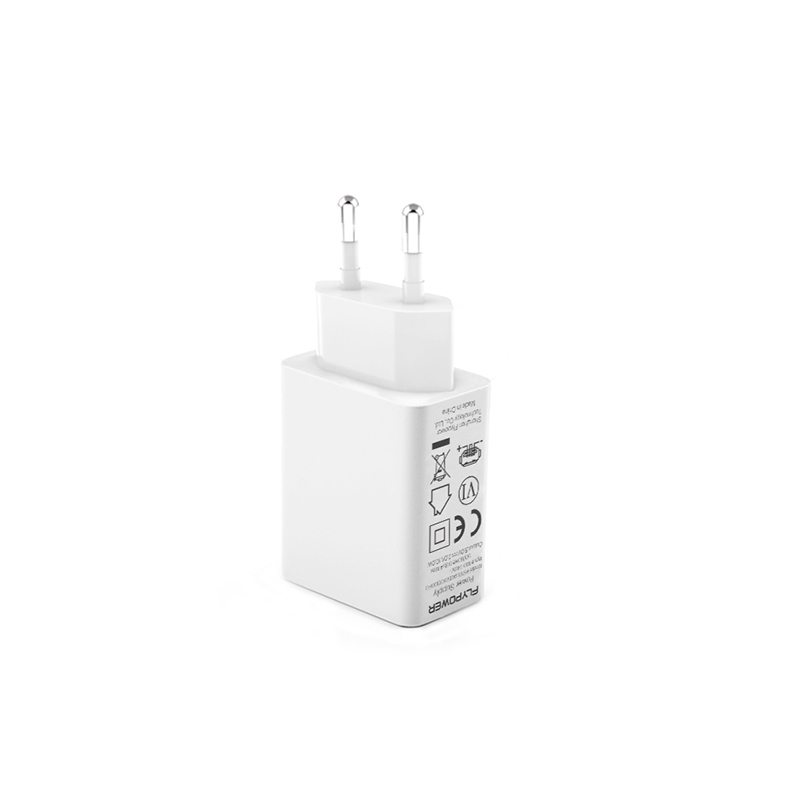

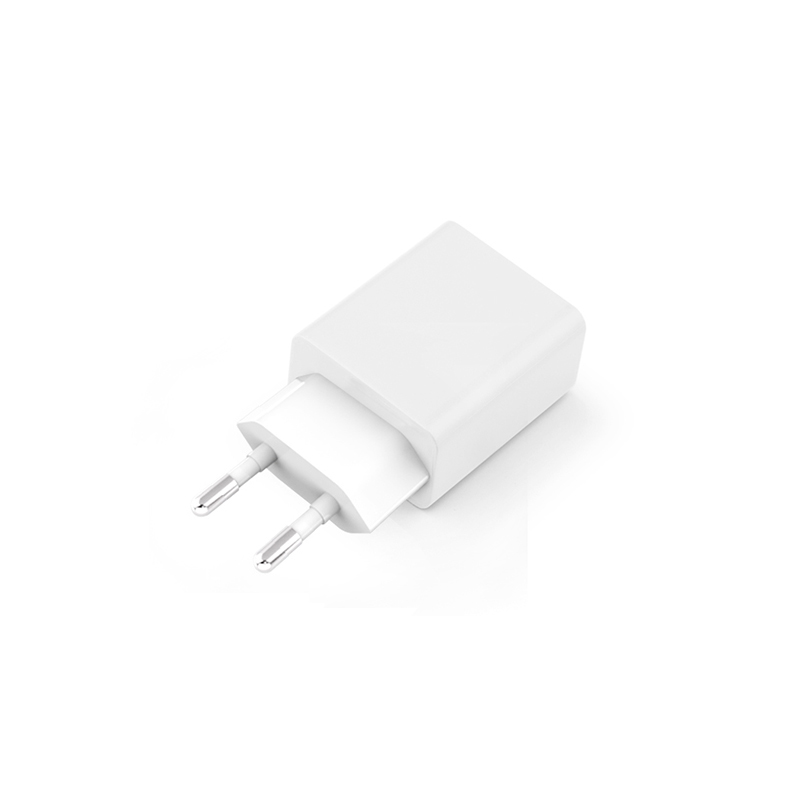

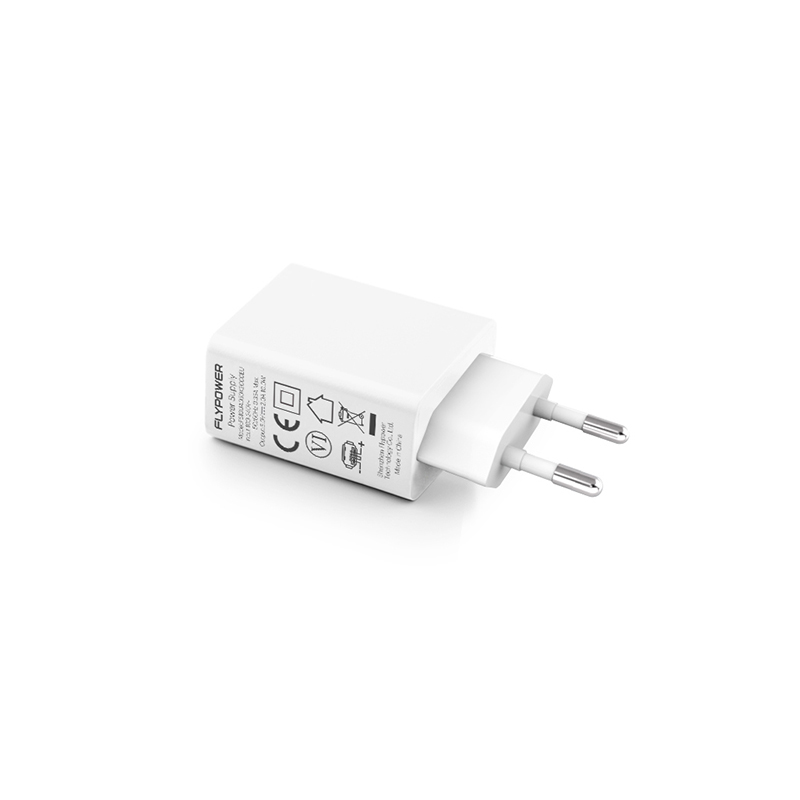

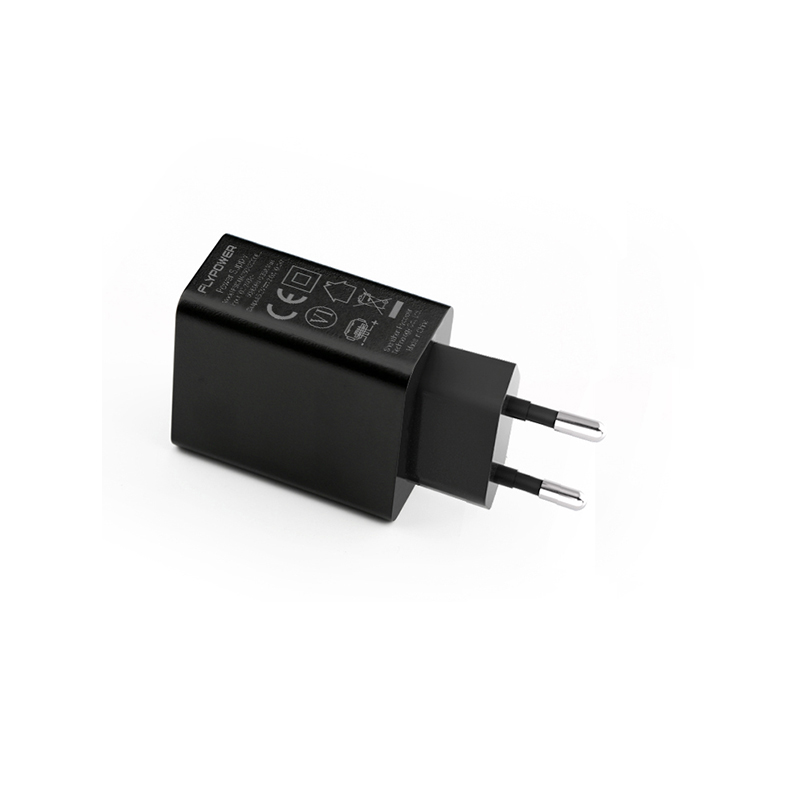

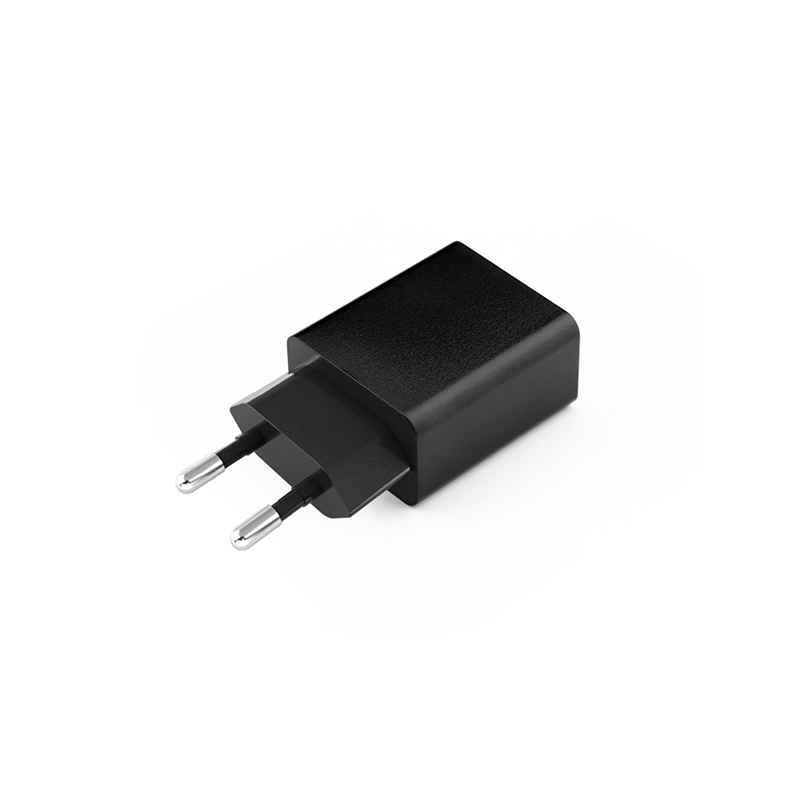

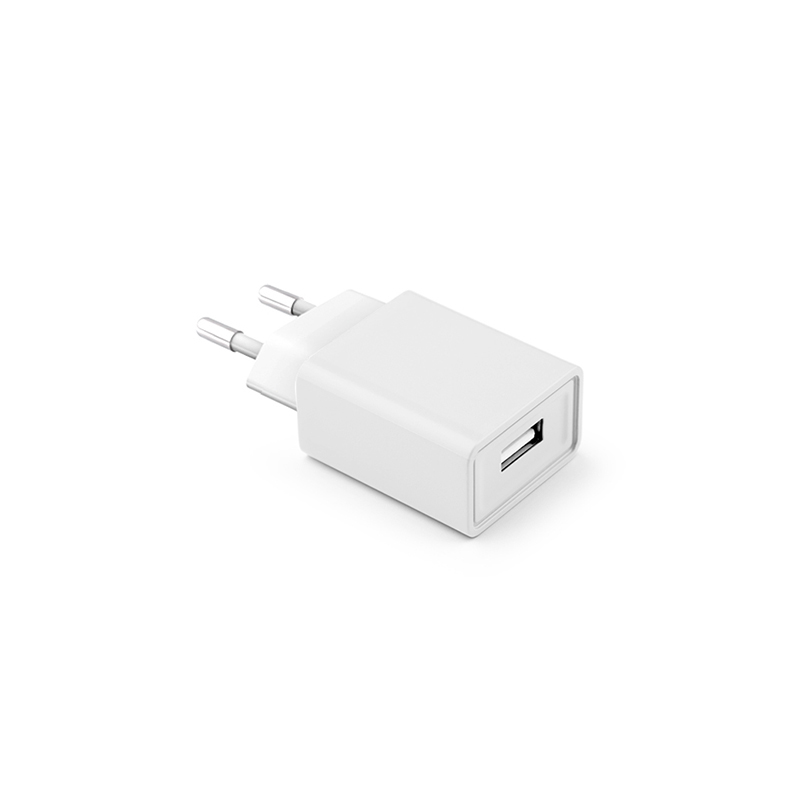

5v2a CE belt line power adapter
5v2a CE belt line power adapter
Product model: ps10j (10W)
Energy efficiency grade: Grade 6
Output voltage: 5V

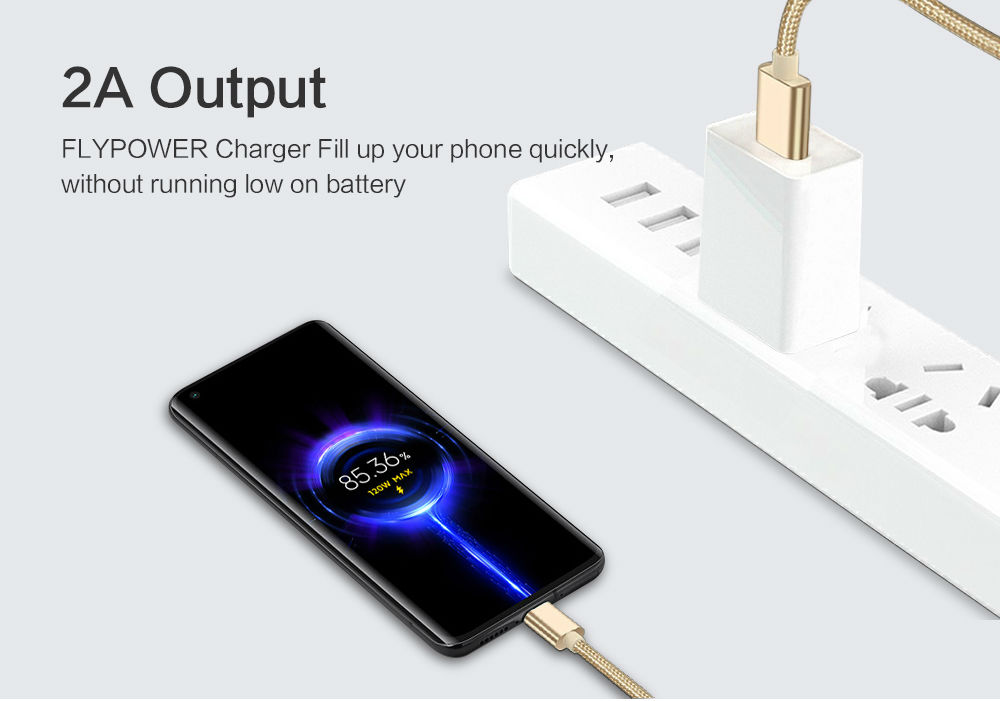

Output current: 2A
Output voltage ripple and noise: 120mvp-p (maximum)
Safety standard: ul60950; FCC Part 15 Subpart B Class B;
IEC/EN60950; EN55032; EN55022;
AS/NZS 60950-1:2015;
GB4943.1-2011; GB9254-2008; GB17625.1-2012
K60950;
Certification: CE
  1. Details
  2. Parameter
  3. Applications

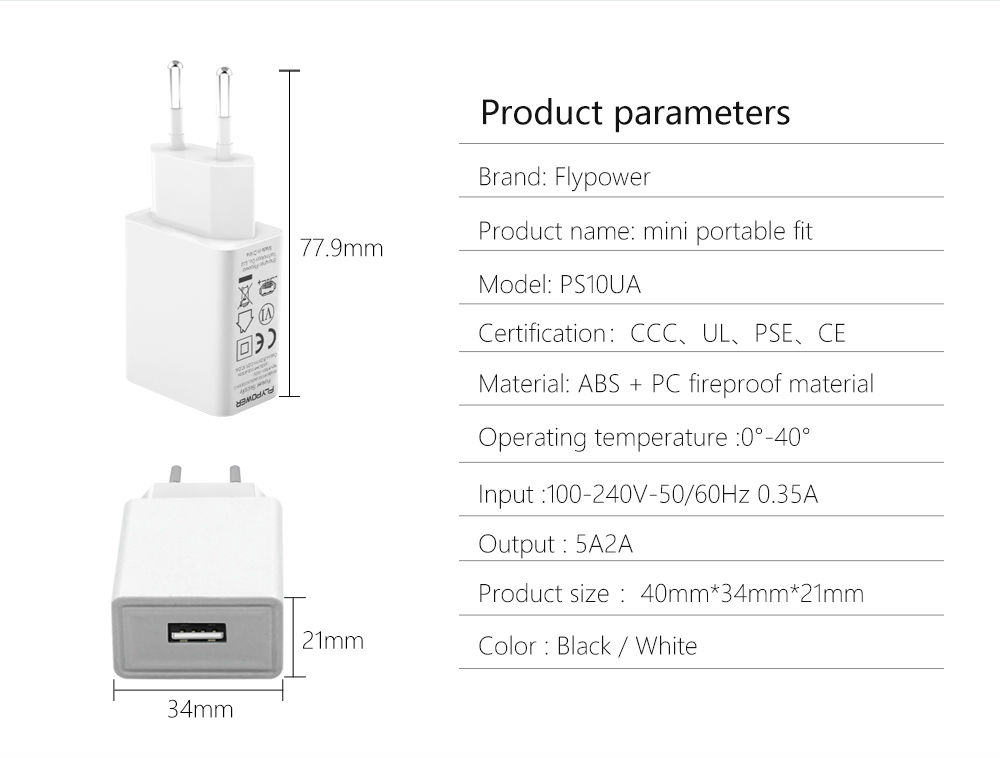

Product parameters

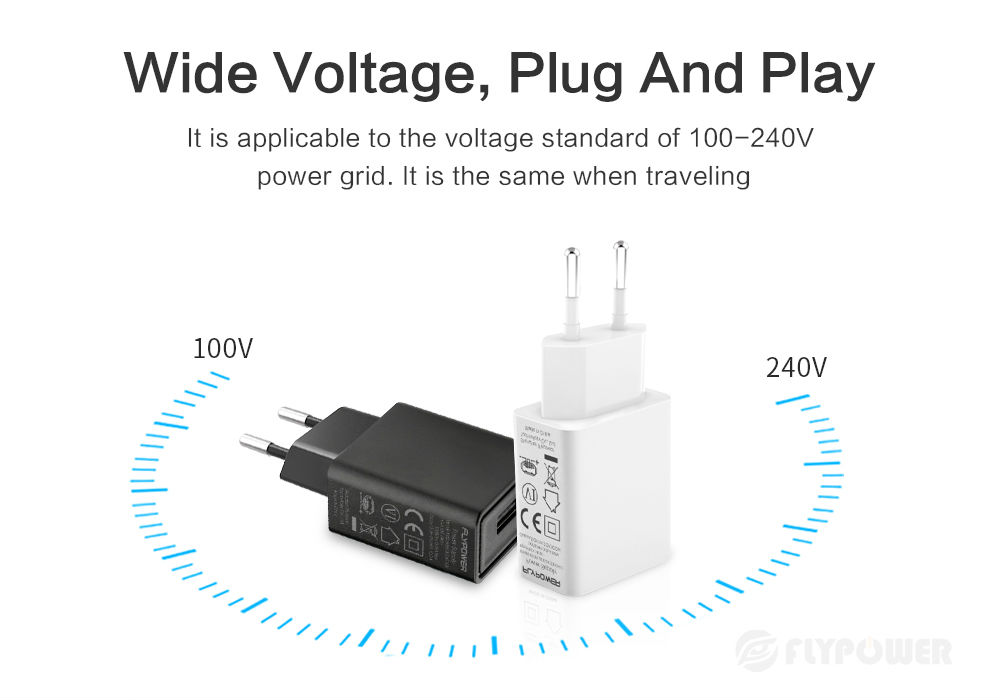

AC input voltage: AC100-240V, 50 / 60Hz

Input current: 0.35A (maximum)

Output voltage: 5-5.5vdc

Output current: 100-2100ma

Input surge current: 60A (maximum)

High voltage test: 3000VAC 10mA 3S

Output voltage ripple and noise: 120mvp-pmax

Energy efficiency grade: VI

Safety standard:

UL60950;  FCCPart 15 Subpart B Class B;

IEC/EN60950; EN55032;  EN55022;

AS/NZS 60950-1:2015;

GB4943.1-2011; GB9254-2008; GB17625.1-2012

K60950;

Safety index:

Insulation resistance: 50m Ω (at 500VDC)

Over current protection

Short circuit protection

Over voltage protection

Environmental requirements

Working temperature: - 5 ° C - + 40 ° C

Storage temperature: - 20 ° C - + 60 ° C

Working humidity: 30% - 85%

Storage humidity: 10% - 95%

authentication:

CB CE GS ULFCC CCC PSE KC BSMI VI


Mobile haircut router flat flashlight desk lamp baby monitor breast pump Bluetooth audio small audio medical instrument beauty instrument health products MTD pwone Med oudio eqwpnat Bluetooth electromagnetic charger plant lamp
