Features
AC input voltage:AC100-240V 50/60Hz
Input current:0.3A(max)
Output voltage: 5VDC
Output current: 2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:100mVp-p max
Efficiency level:VI
Safety standard:
UL60950; FCC Part 15 Subpart B Class B;
IEC/EN60950; EN55032; EN55022;
AS/NZS 60950-1:2015;
GB4943.1-2011; GB9254-2008;GB17625.1-2012
Safety Index:
Insulation resistors:50MΩ(at 500VDC)
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC PSE KC BSMI VI

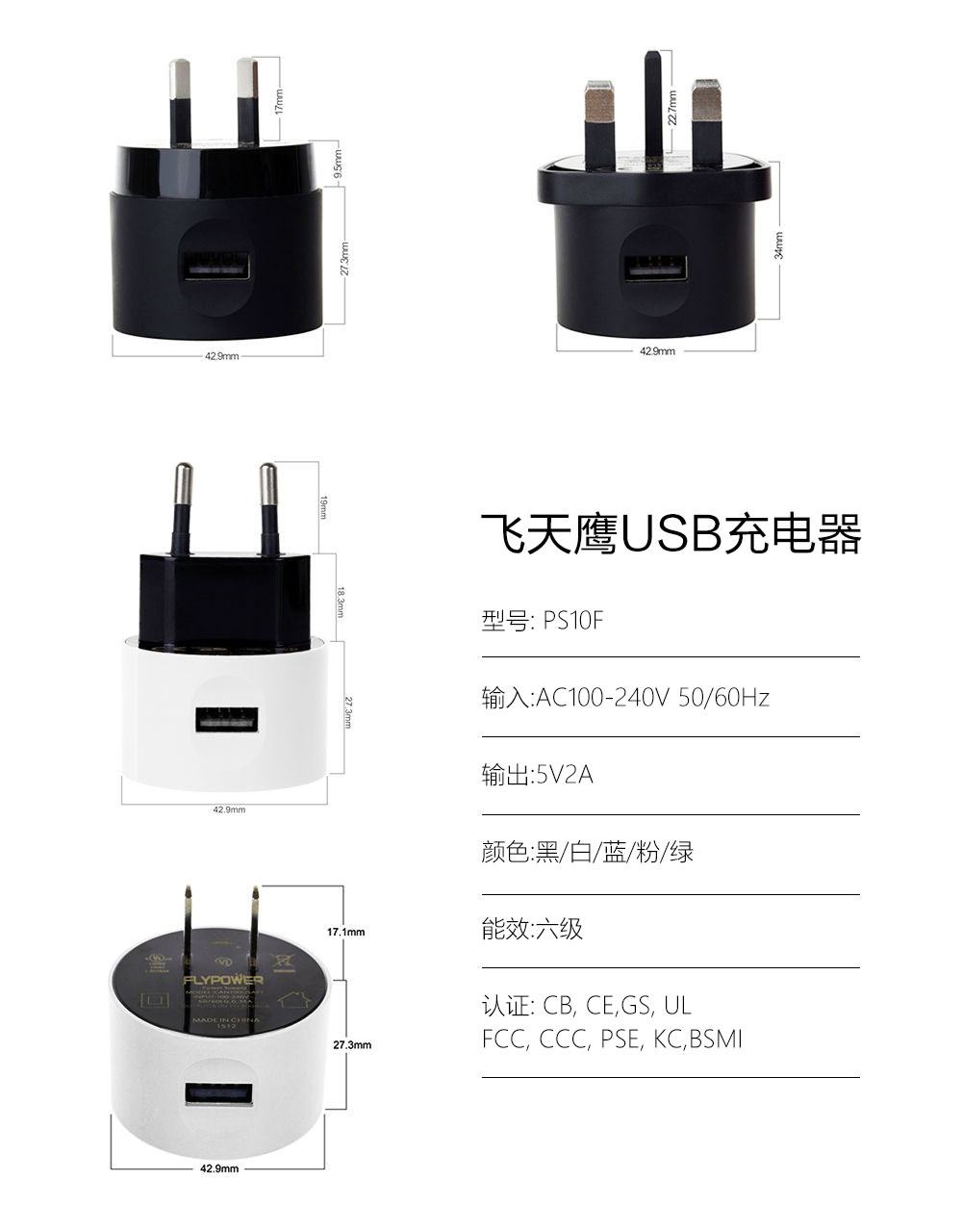

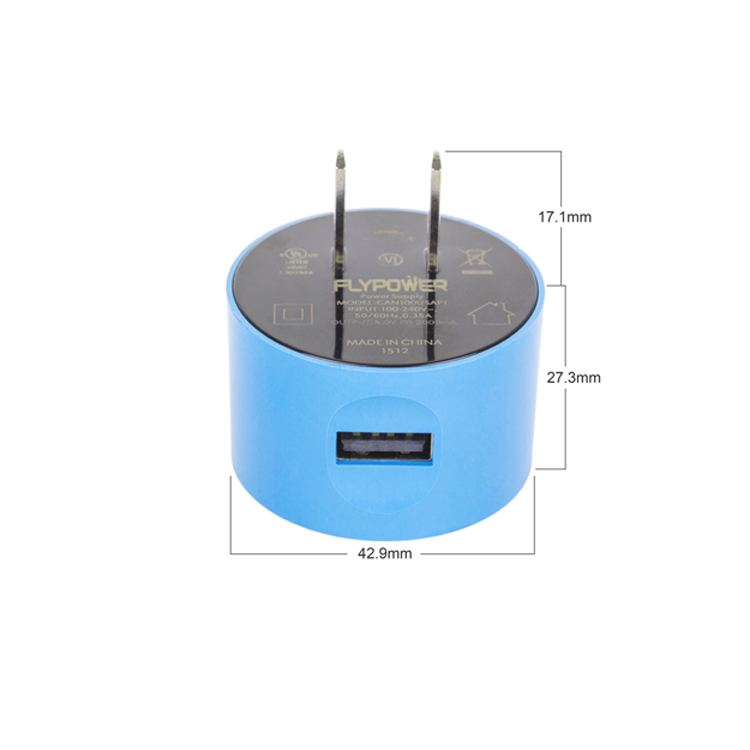

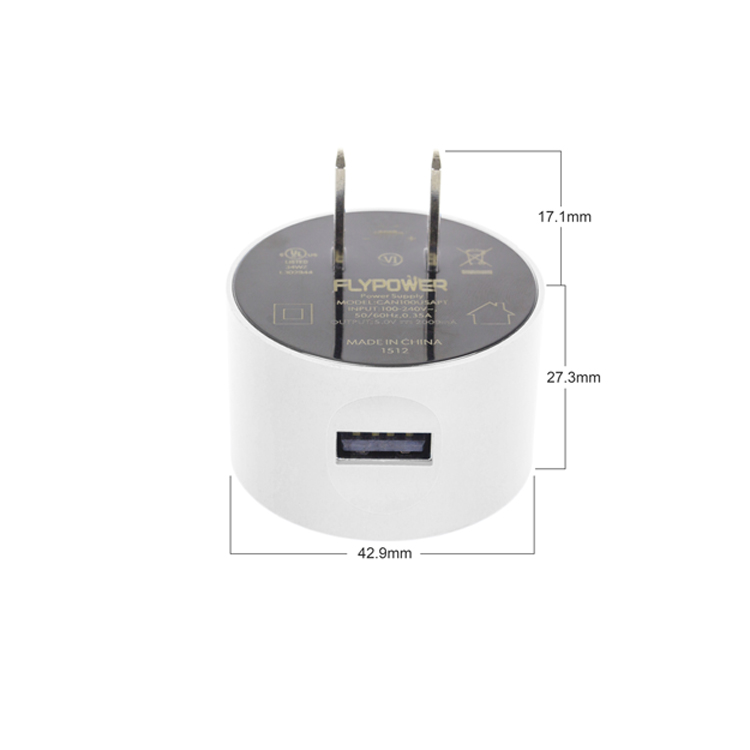

Outside drawing
Features
AC input voltage:AC100-240V 50/60Hz
Input current:0.3A(max)
Output voltage: 5VDC
Output current: 2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:100mVp-p max
Efficiency level:VI
Safety standard:
UL60950; FCC Part 15 Subpart B Class B;
IEC/EN60950; EN55032; EN55022;
AS/NZS 60950-1:2015;
GB4943.1-2011; GB9254-2008;GB17625.1-2012
Safety Index:
Insulation resistors:50MΩ(at 500VDC)
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC PSE KC BSMI VI
Outside drawing
Network player, MTD, router, DV, VR, AR, MID, mobile phone, tablet, game machine, small stereo, digital camera,iPad
