Stable output of class 6 energy efficiency power supply, high efficiency and energy saving

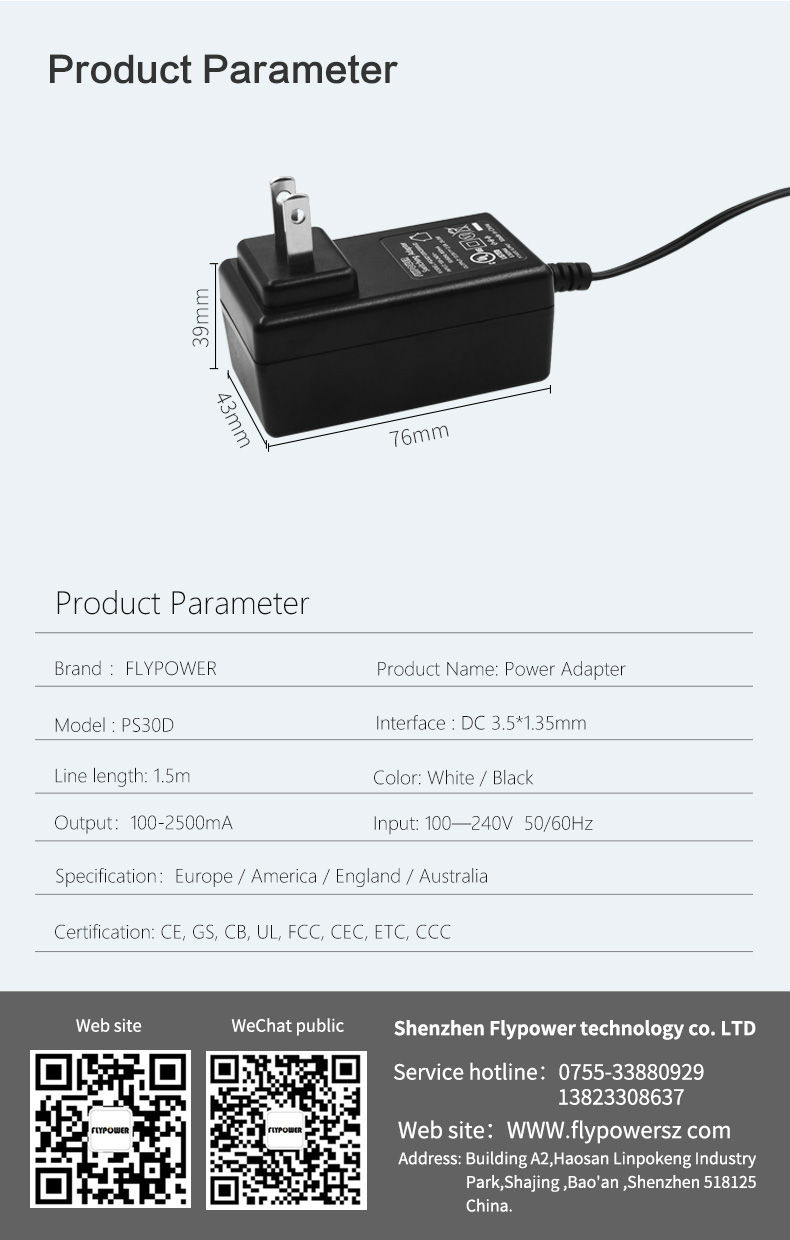

Product parameters

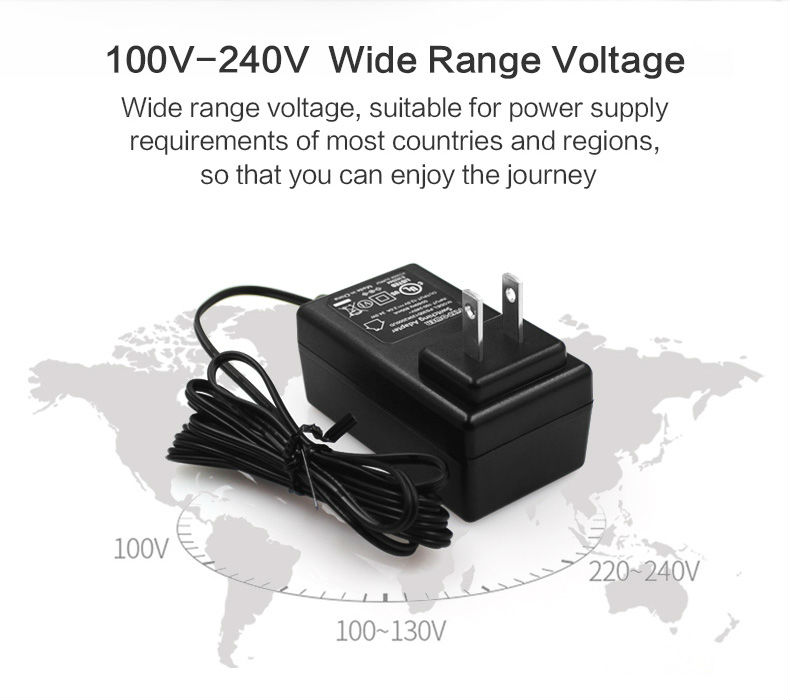

AC input voltage: AC100-240V 50/60hz

Input current: 0.25A (max.)

Output voltage: 2-5vdc

Output current: 100-1200ma

Input surge current: 60A (maximum)

High pressure test: 3000VAC 10mA 3S

Output voltage ripple and noise: 200mvp-p Max

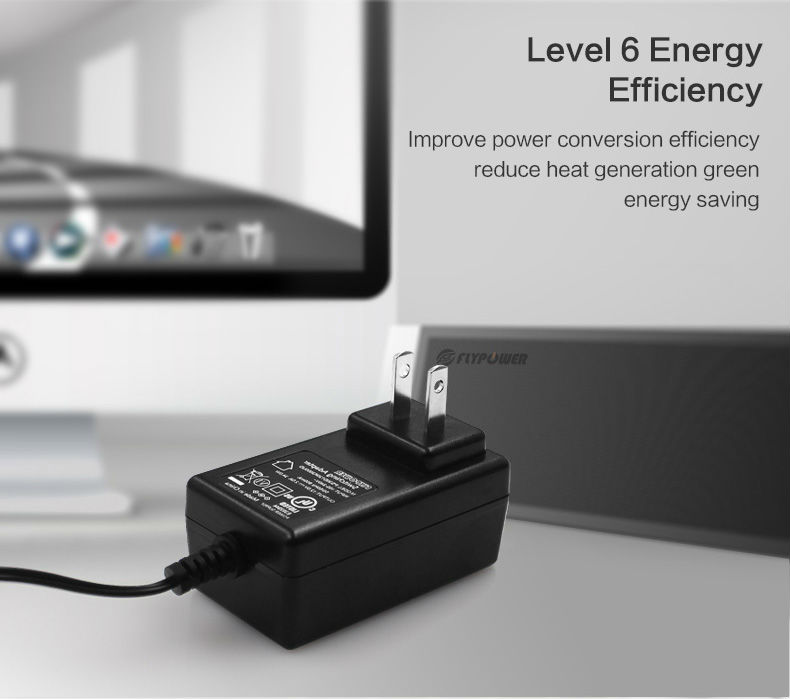

Energy efficiency grade: VI

Safety standards:

UL60950

FCC Part 15Subpart B Class B

GB4943.1-2011; GB9254-2008; GB17625.1-2012

Safety index:

Insulation resistance: 50m Ω（ at 500VDC）

Over current protection

Short circuit protection

Over voltage protection

Environmental requirements

Operating temperature: ° C-+40 ° C.

Storage temperature: ° C-+60 ° C.

Working humidity: 30% - 85%

Storage humidity: 10% to 95%

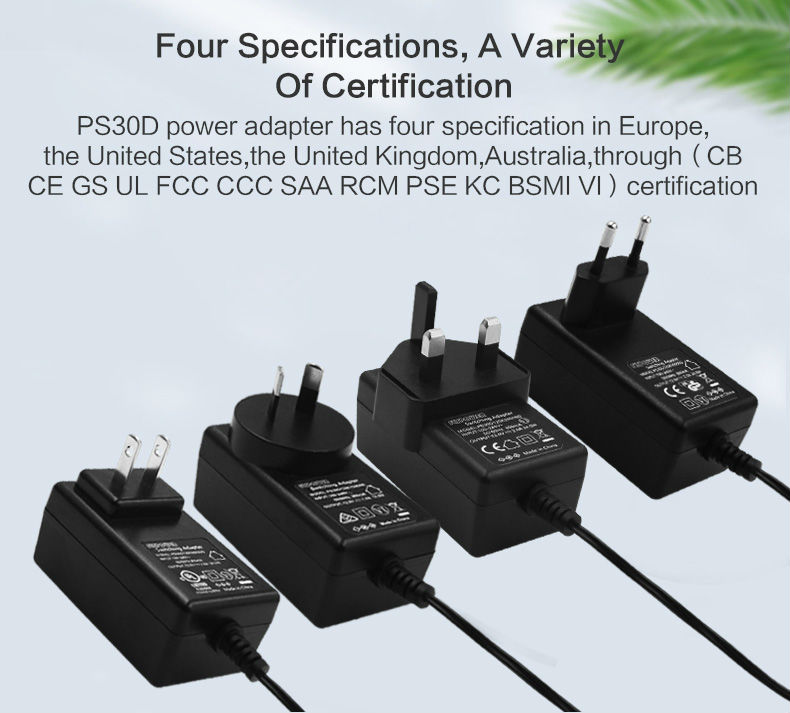

authentication:

CB UL FCC CCCPSE BSMI VI

Mobile phone haircut router flat flashlight lamp baby monitor sucking device Bluetooth sound small sound medical instrument beauty instrument health products MTD pwone Med oudio eqwpnat Bluetooth electromagnetic charger plant lamp router
