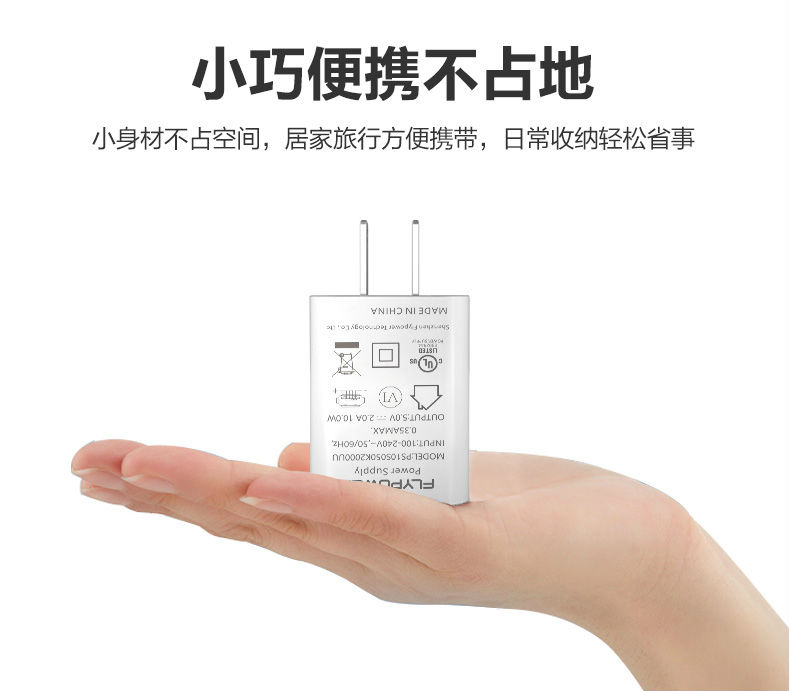

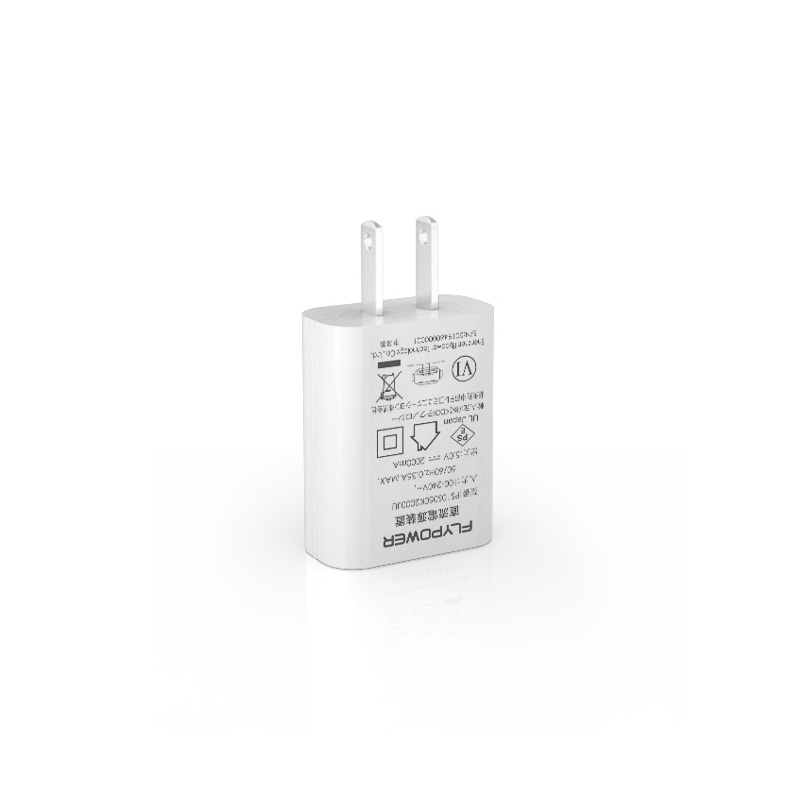

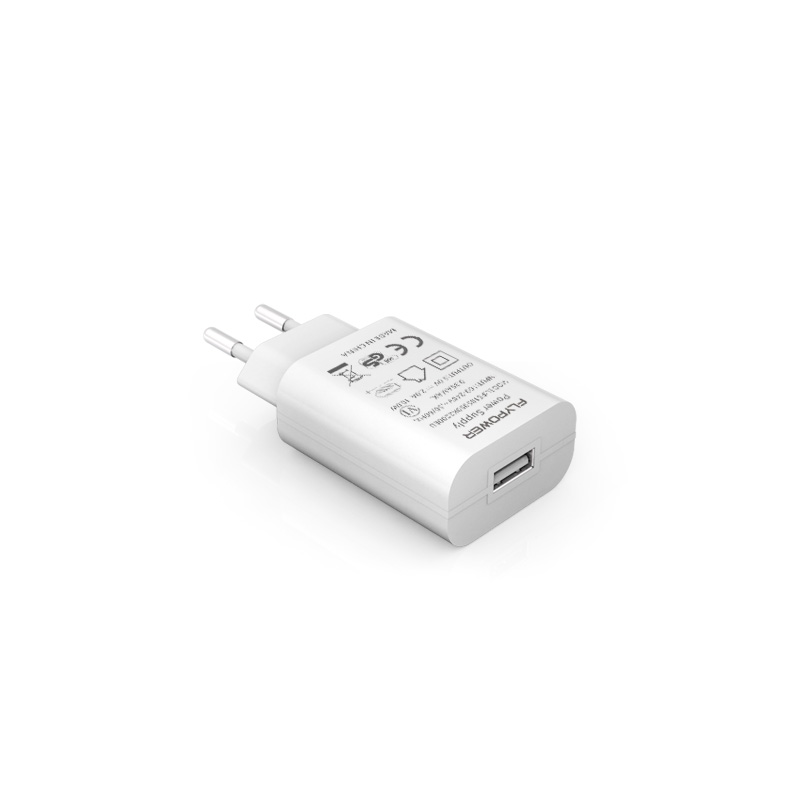

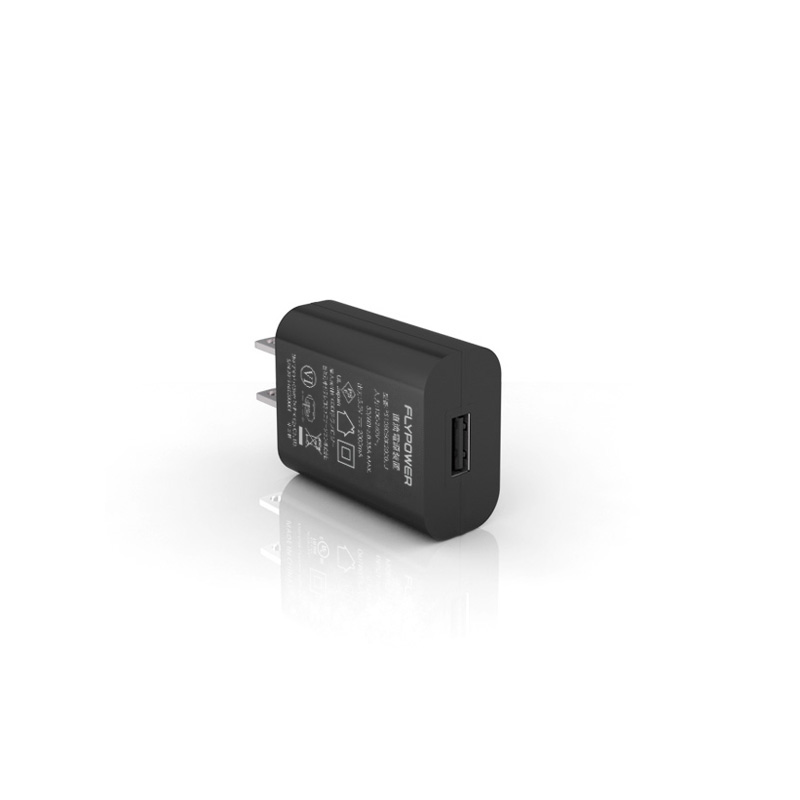

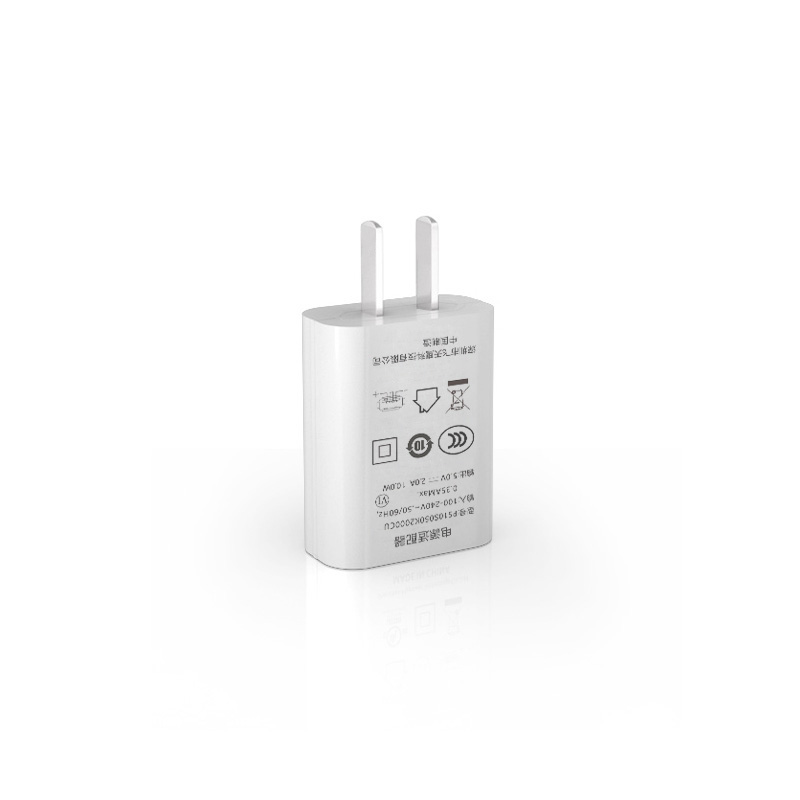

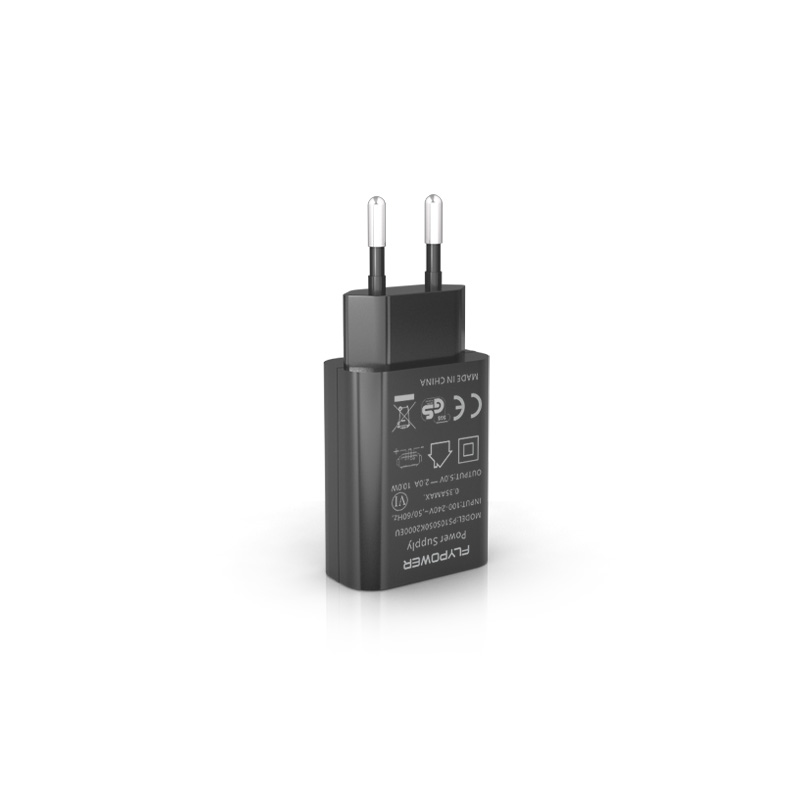

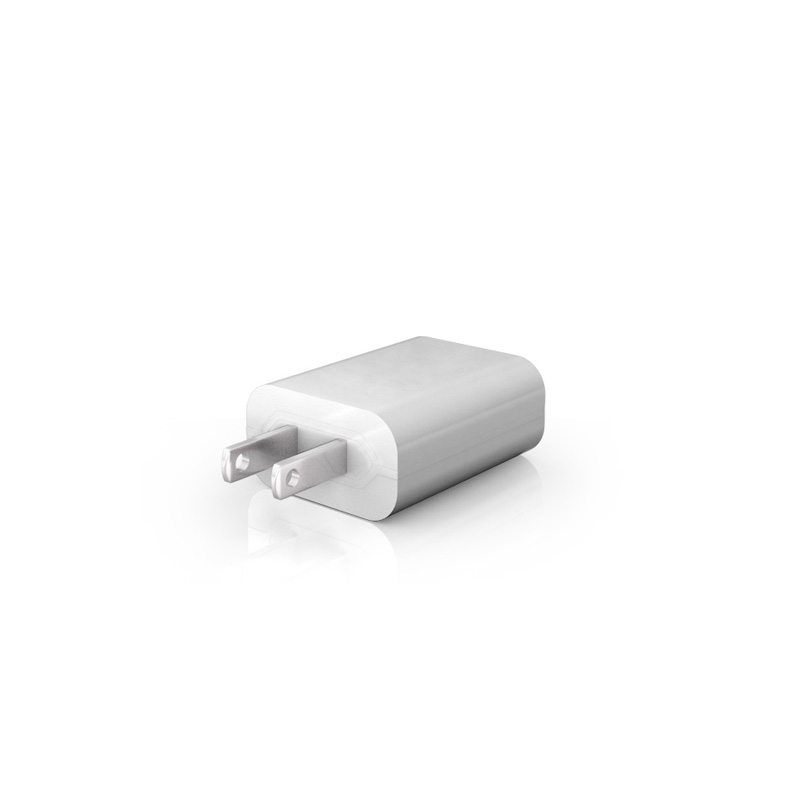

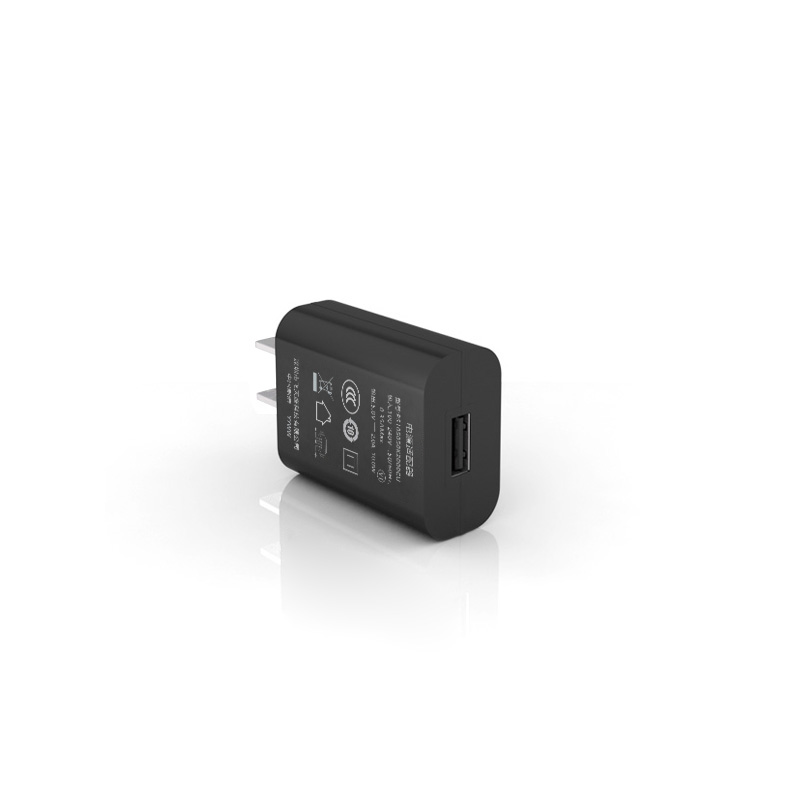

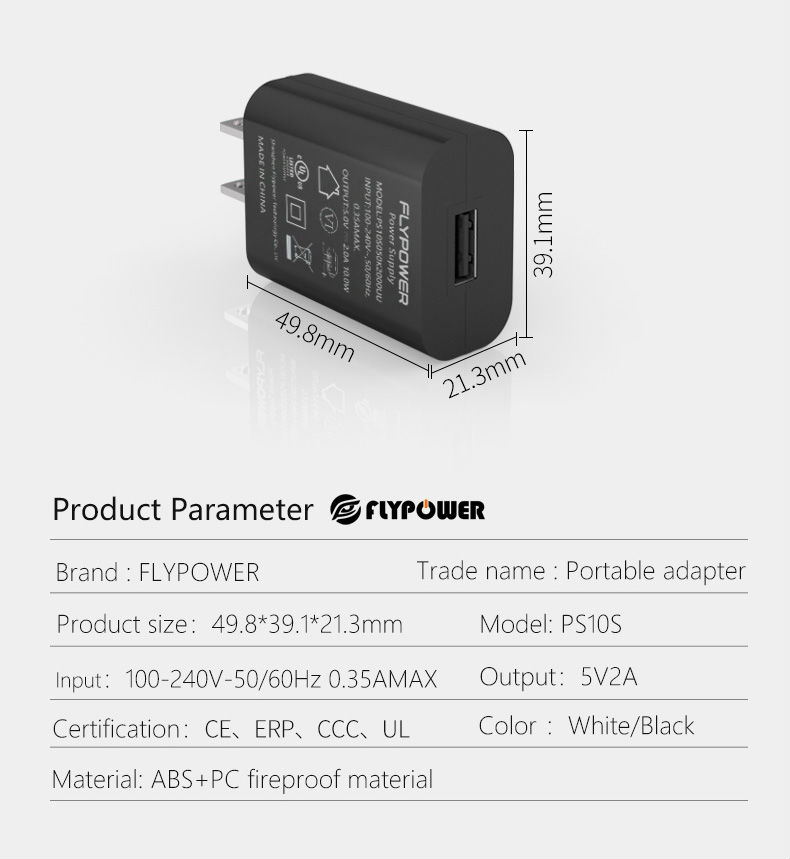

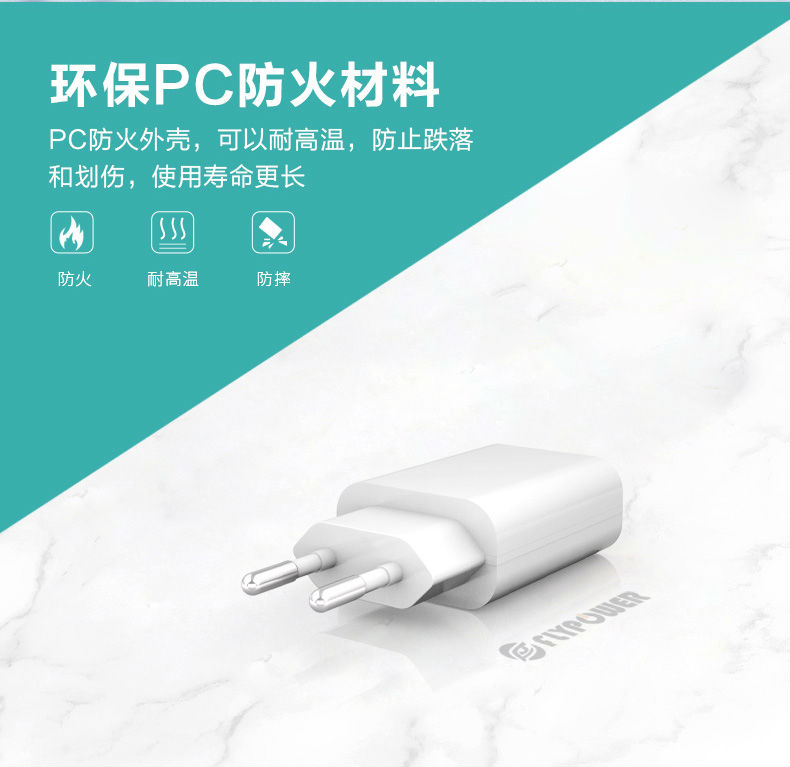

5V / 2A PSE USB power adapter
5V / 2A PSE USB power adapter
Product model: ps11b (10W)

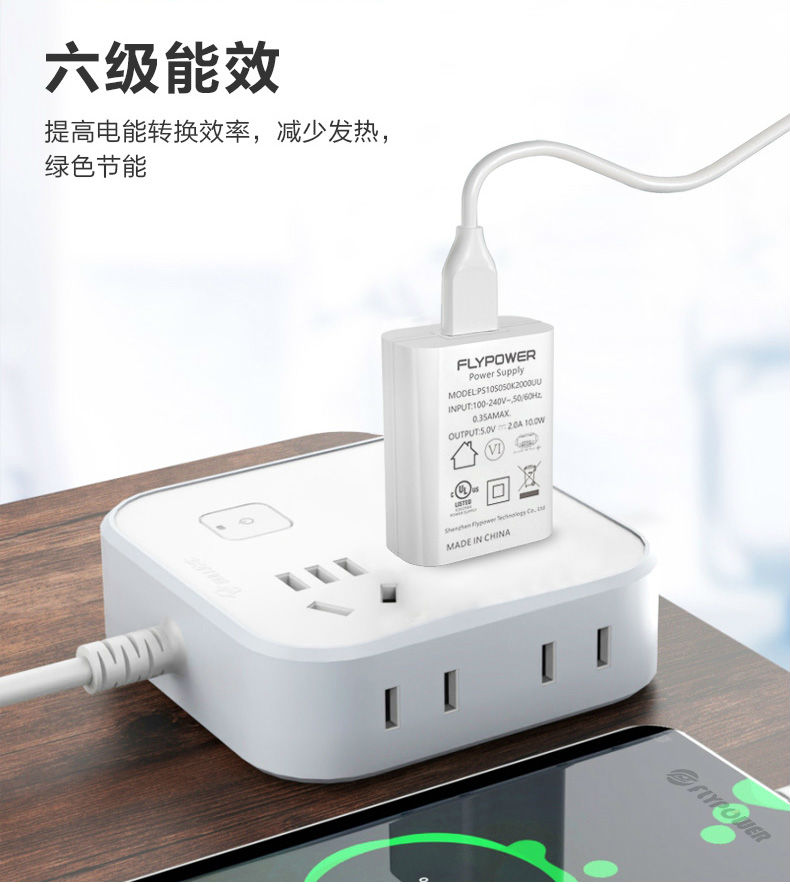

Energy efficiency grade: Grade 6
Output voltage: 4.75V ~ 5.25V
Output current: 2A (maximum)
Output voltage ripple and noise: 150mvp-p Max
Safety standard j60950-1 (H26) j55022 (H22)
Certification: CB CE GS ETL FCC CCC CQC PSE SAA RCM KC BSMI VI
  1. Details
  2. Parameter
  3. Applications

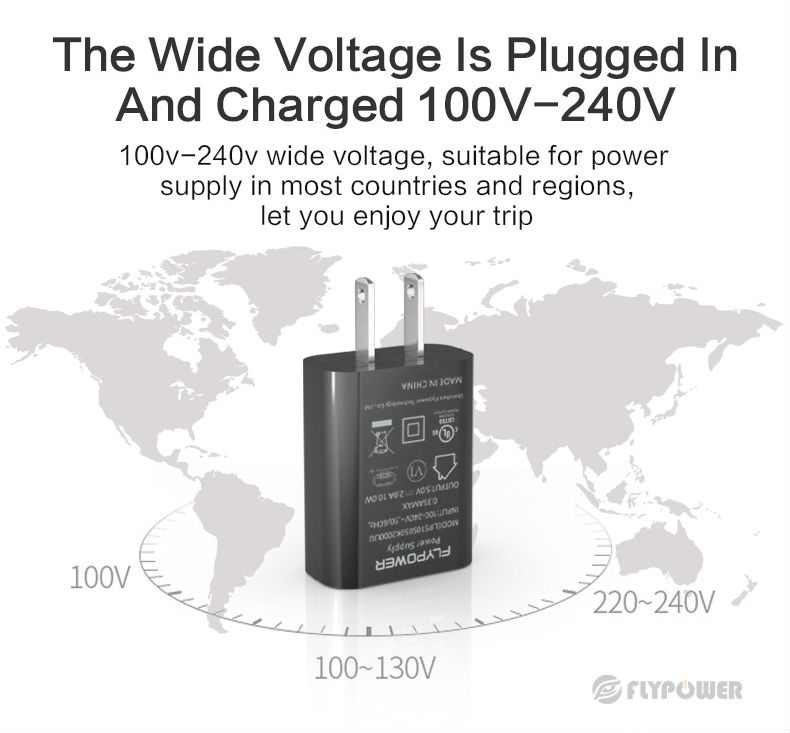

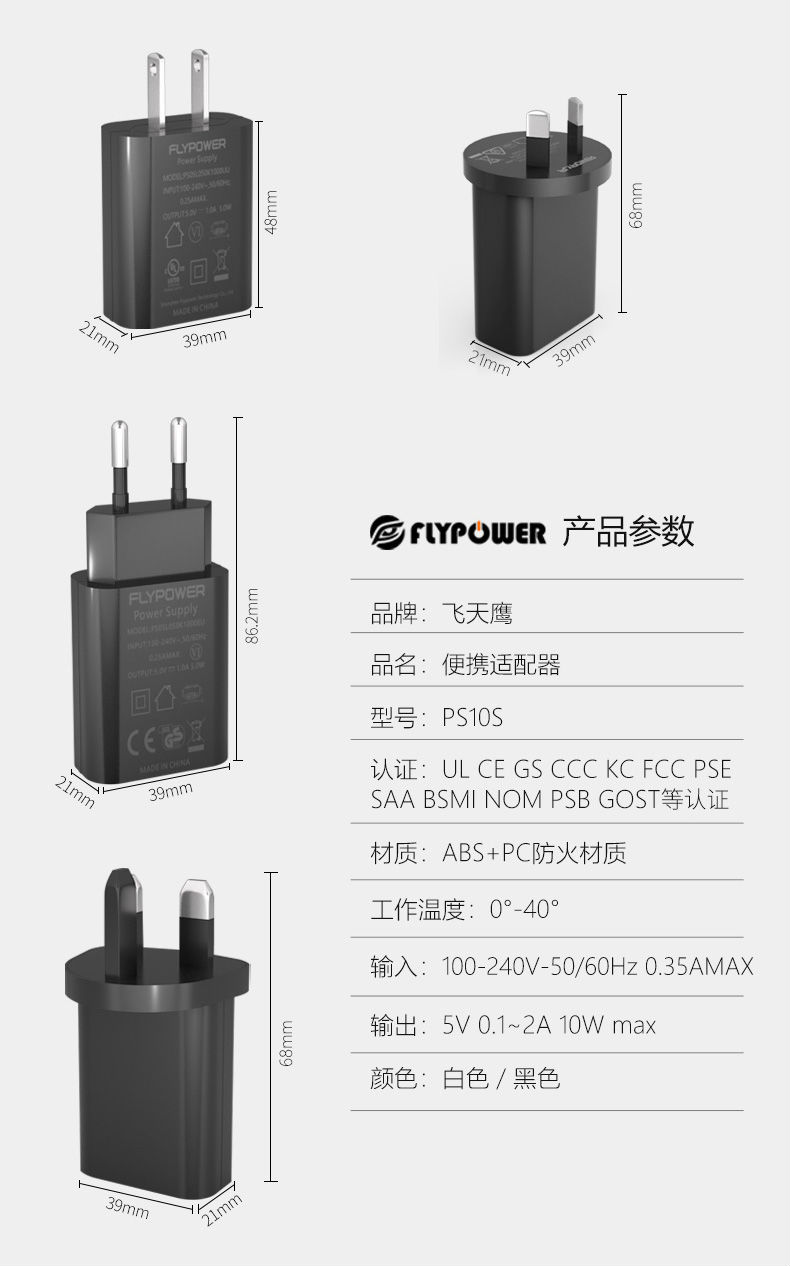

AC input voltage: ac100-240v50 / 60Hz

Input current: 0.35A (maximum)

Output voltage: 4.65v ~ 5.35v

Output current: 2A (maximum)

Input surge current: 60A (maximum)

High voltage test: 3000vac10ma 3S

Output voltage ripple and noise: 150mvp Pmax

Energy efficiency grade: VI

Safety standard gb4943.1-2011; GB17625.1-2012; GB/T9254-2008

Insulation resistance: 100M Ω (at 500VDC)

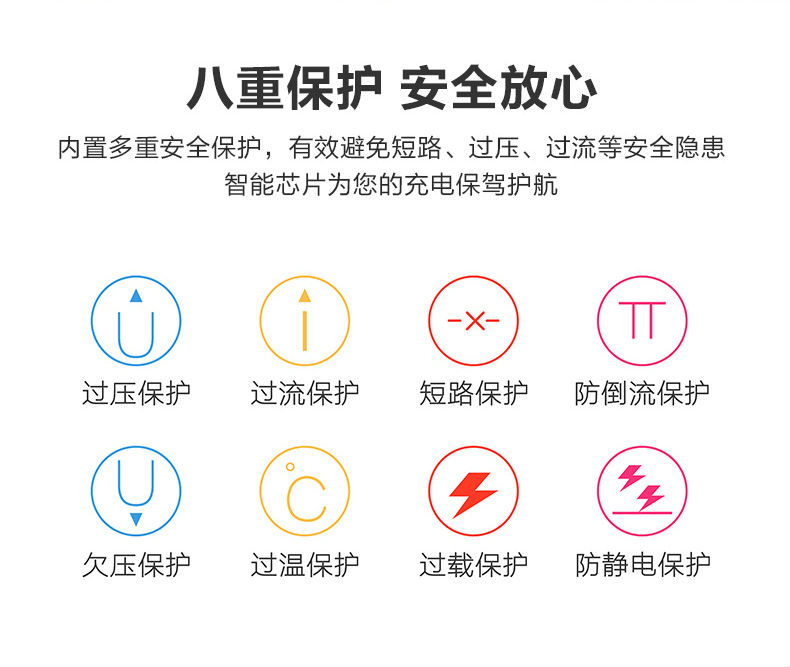

Over current protection

Short circuit protection

Over voltage protection

Environmental requirements

Working temperature: 0 ° C - + 40 ° C

Working humidity: 20% - 80%

Storage temperature: - 40 ° C - + 70 ° C

Storage humidity: 10% - 95%

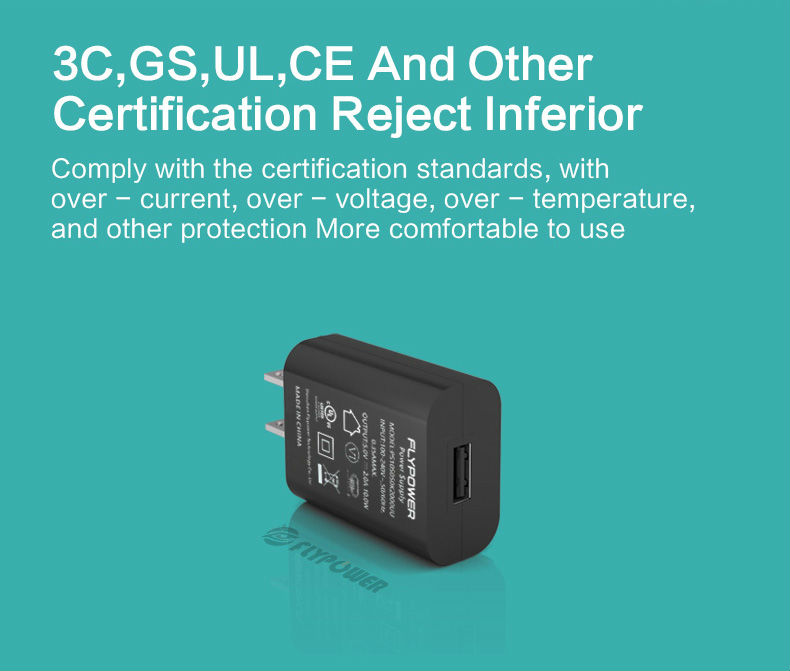

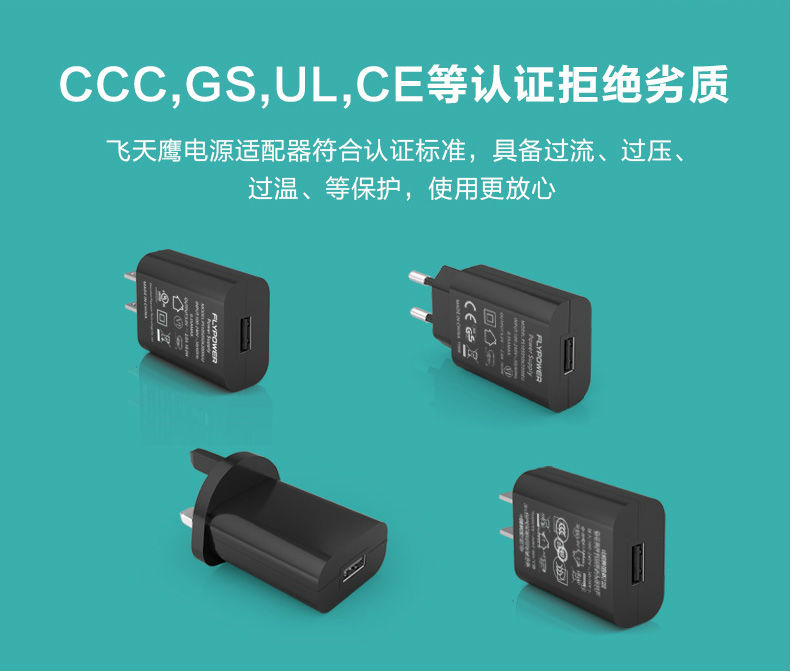

authentication:

CBCE GS ETL FCC CCC CQC PSE SAA RCM KC BSMI VI



Set top box mid mobile phone, tablet pc mini audio Bluetooth headset Bluetooth audio mini audio distributor netbook router MTD pwone router AR Business Book
