Features
AC input voltage:AC100-240V 50/60Hz
Input current:1.5A（max）
Output voltage: 12-48VDC
Output current:100-8000mA
Input inrush current:80A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:300mVp-p max
Efficiencylevel:VI
Safetystandard:
UL62368;UL1310;FCC Part 15 Subpart B Class B
IEC/EN60950;IEC/EN61558;IEC/EN60335;EN55032;EN55022;EN55014
GB4943.1-2011;GB9254-2008;GB17625.1-2012
GB4943.1-2011;GB9254-2008;GB17625.1-2012
GB8898-2011,GB13837-2012,GB17625.1-2012
SafetyIndex:
Insulationresistors:50MΩ（at 500VDC）

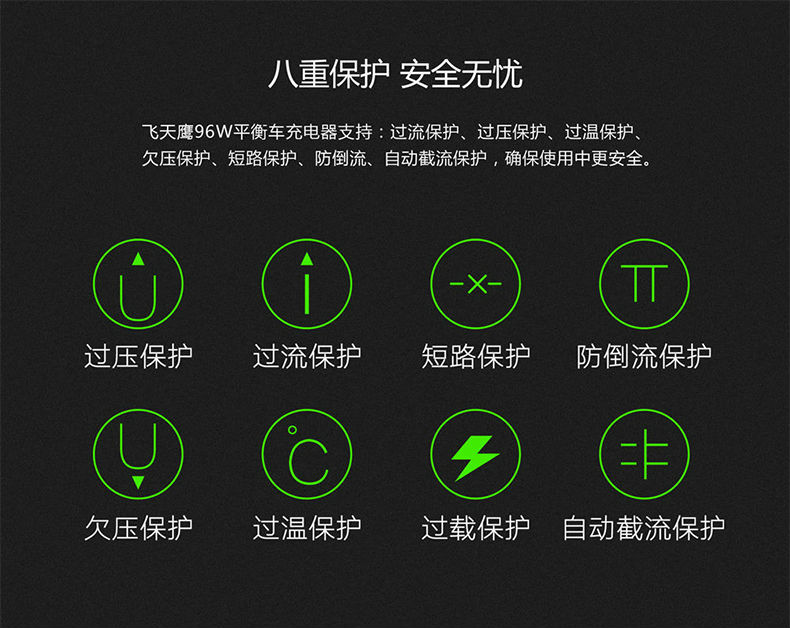

Overcurrent protection
Short circuit protection
Over voltage protection
EnvironmentalRequirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI
Modellist and rating:
Model | Input rating | Output volt | Output current | Ripple & Noise | Max power output | Output connector | Market | Approval |
PS96AxxxYyyyyH/S (xxx=120-480; yyyy=0100-8000) | 100-240~,50/60Hz 1.5A | 12-48VDC | 100-8000mA | ＜300mVp-p | 96W | DC line | universal | CB, CE, GS, UL, FCC, CCC, SAA, RCM, PSE, KC, BSMI |

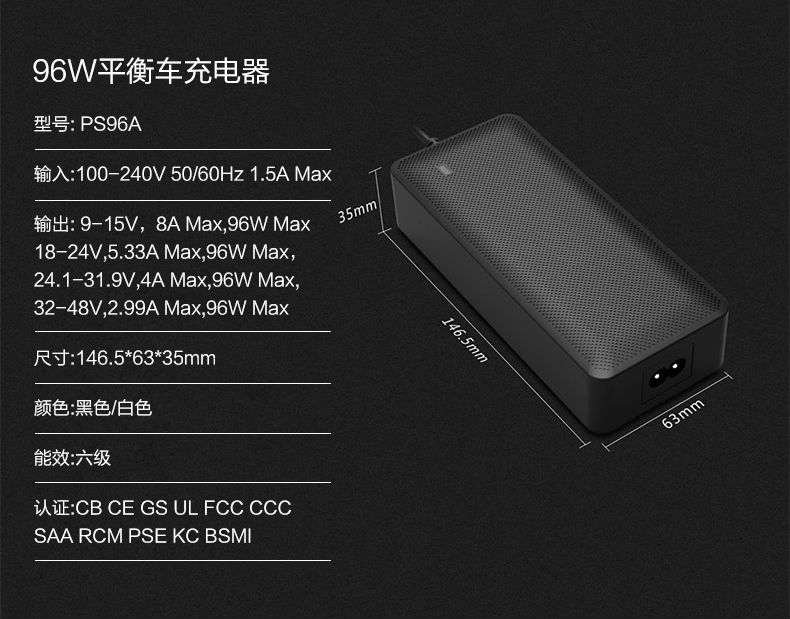

Outside drawing
Specification | 1PCS N.W(Kgs) | PCS/CTN | Size(mm) | N.W(kgs) | G.W(kgs) |
PS96AxxxYyyyyH/S (xxx=120-480; yyyy=0100-8000) | 0.388 | 30 | 450X400X180 | 11.7 | 12.7 |
Packing:PEbag or white box
Features
AC input voltage:AC100-240V 50/60Hz
Input current:1.5A（max）
Output voltage: 12-48VDC
Output current:100-8000mA
Input inrush current:80A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:300mVp-p max
Efficiency level:VI
Safety standard:
UL62368;UL1310;FCC Part 15 Subpart B Class B
IEC/EN60950;IEC/EN61558;IEC/EN60335;EN55032;EN55022;EN55014
GB4943.1-2011;GB9254-2008;GB17625.1-2012
GB4943.1-2011;GB9254-2008;GB17625.1-2012
GB8898-2011,GB13837-2012,GB17625.1-2012
Safety Index:
Insulation resistors:50MΩ(at 500VDC）
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI

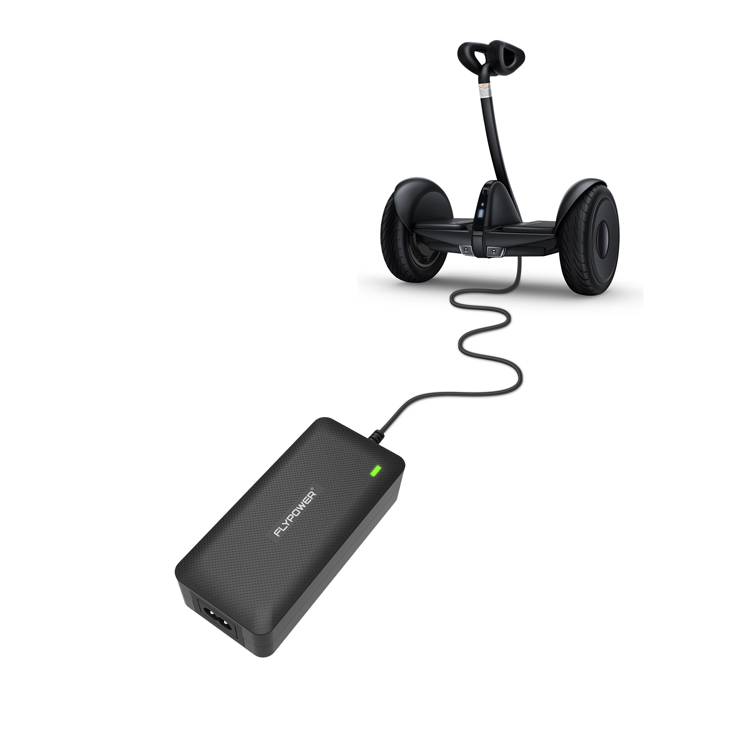

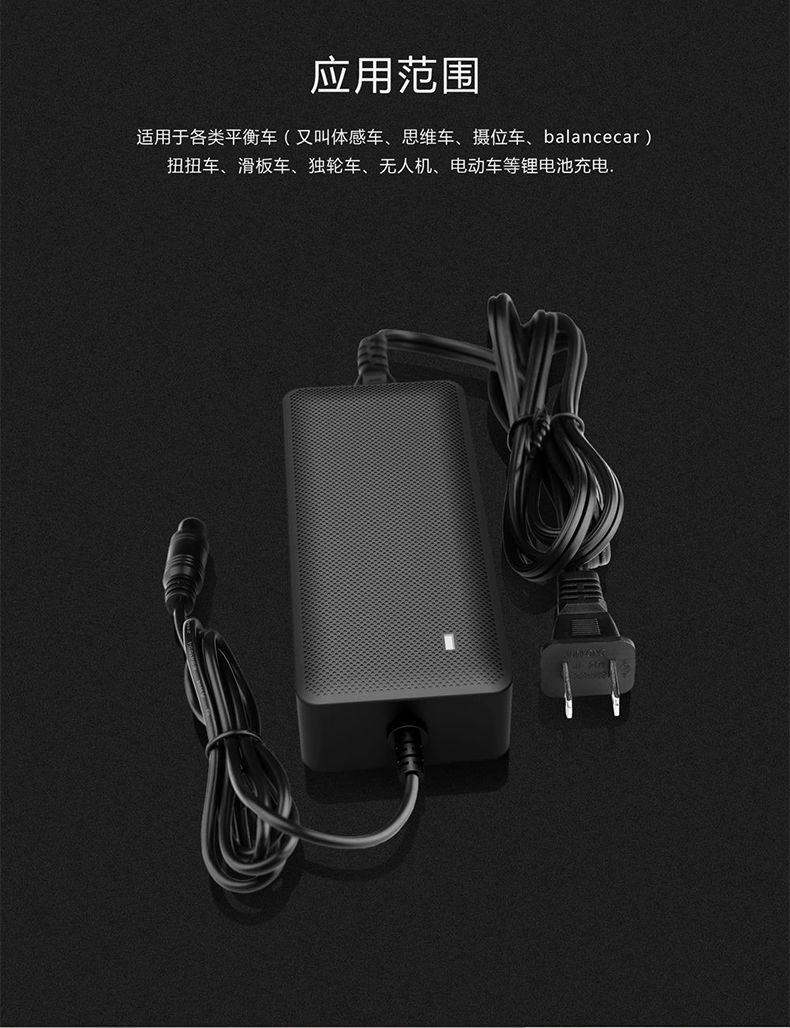

electrombile,balance car, IT equipment system, etc.
