Features
AC input voltage:AC100-240V 50/60Hz
Input current:2.0A(max)
Output voltage:36-60VDC
Output current:100-2330mA
Input inrush current:80A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:500mVp-p max
Efficiencylevel:VI
Safetystandard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60335-1; IEC/EN61558-2-16
SafetyIndex:
Insulationresistors:50MΩ(at 500VDC)

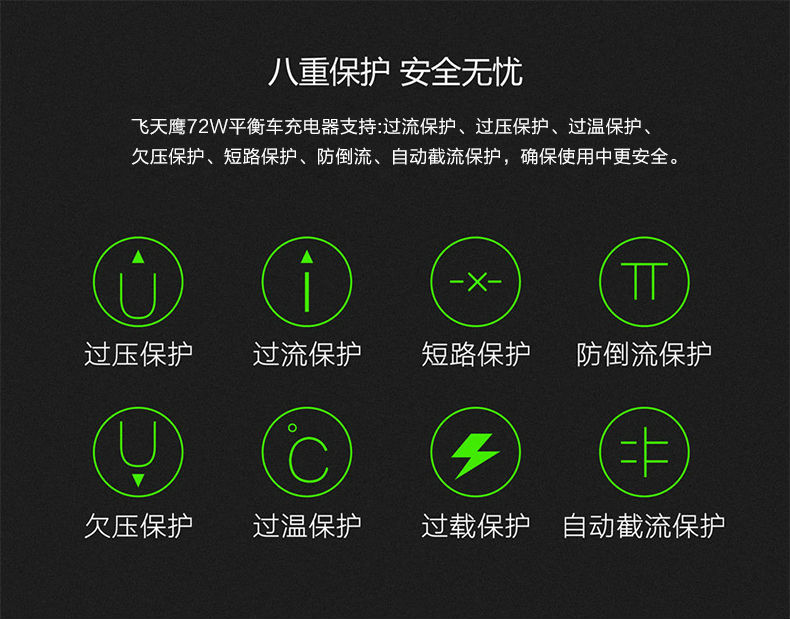

Overcurrent protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI
Modellist and rating:
Model | Input rating | Output volt | Output current | Ripple & Noise | Max power output | Output connector | Market | Approval |
PS84BxxxYyyyyH/S (xxx=360-600; yyyy=0100-2330) | 100-240~,50/60Hz 2.0A | 36-60VDC | 100-2330mA | <500mVp-p | 84W | DC line | universal | CB, CE, GS, UL, FCC, CCC, SAA, RCM, PSE, KC, BSMI |

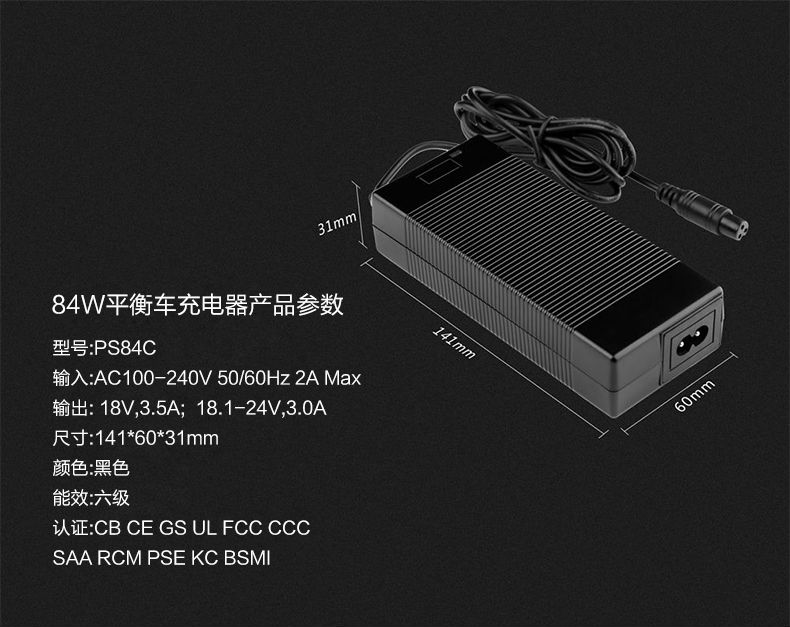

Outside drawing
Specification | 1PCS N.W(Kgs) | PCS/CTN | Size(mm) | N.W(kgs) | G.W(kgs) |
PS84BxxxYyyyyH/S (xxx=360-600; yyyy=0100-2330) | 0.318 | 30 | 450X400X180 | 9.6 | 10.6 |
Packing:PEbag or white box
Features
AC input voltage:AC100-240V 50/60Hz
Input current:2.0A(max)
Output voltage:36-60VDC
Output current:100-2330mA
Input inrush current:80A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:500mVp-p max
Efficiency level:VI
Safety standard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60335-1; IEC/EN61558-2-16
Safety Index:
Insulation resistors:50MΩ(at 500VDC)
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI

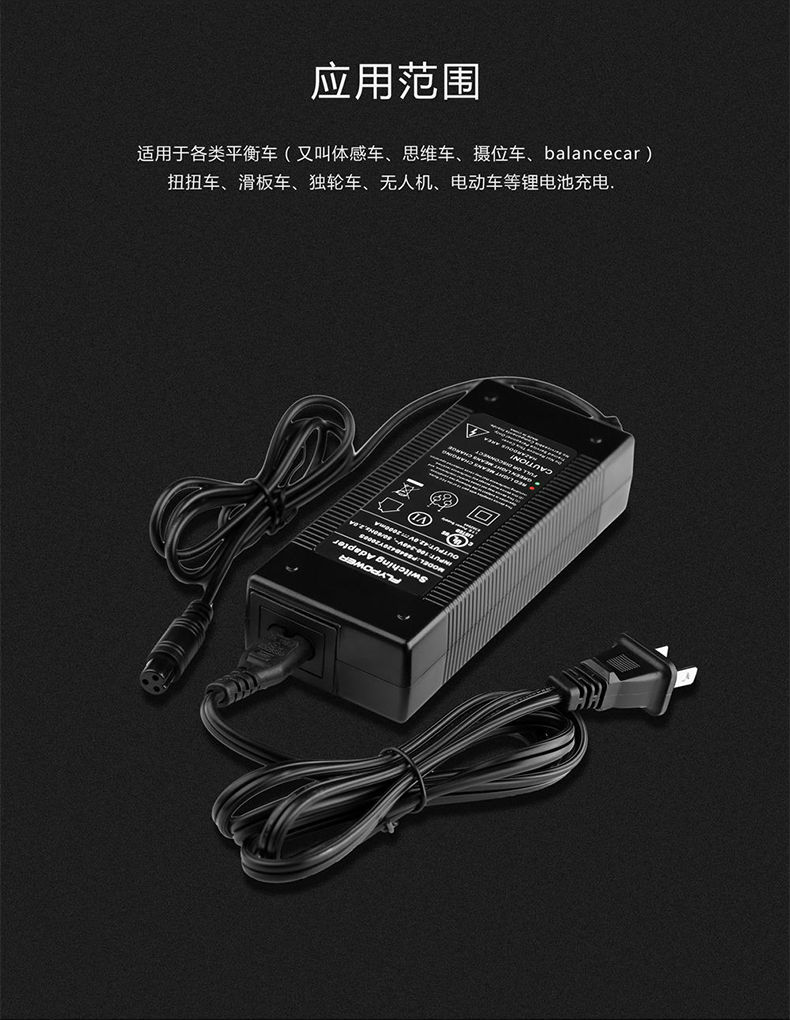

Balance car (also called inmotion, segway,)
Twist car, scooter, wheelbarrow etc.
