Features
AC input voltage:AC100-240V 50/60Hz
Input current:1.5A（max）
Output voltage:24-48VDC
Output current:100-2700mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:300mVp-p max
Efficiencylevel:VI
Safetystandard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60335-1; IEC/EN61558-2-16
SafetyIndex:
Insulationresistors:50MΩ（at 500VDC）

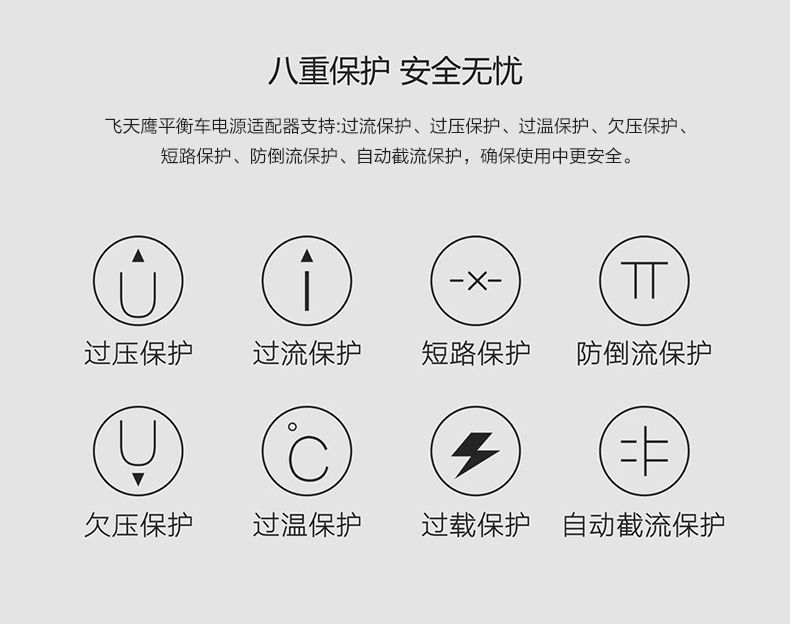

Overcurrent protection
Shortcircuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI
Modellist and rating:
Model | Input rating | Output volt | Output current | Ripple & Noise | Max power output | Output connector | Market | Approval |

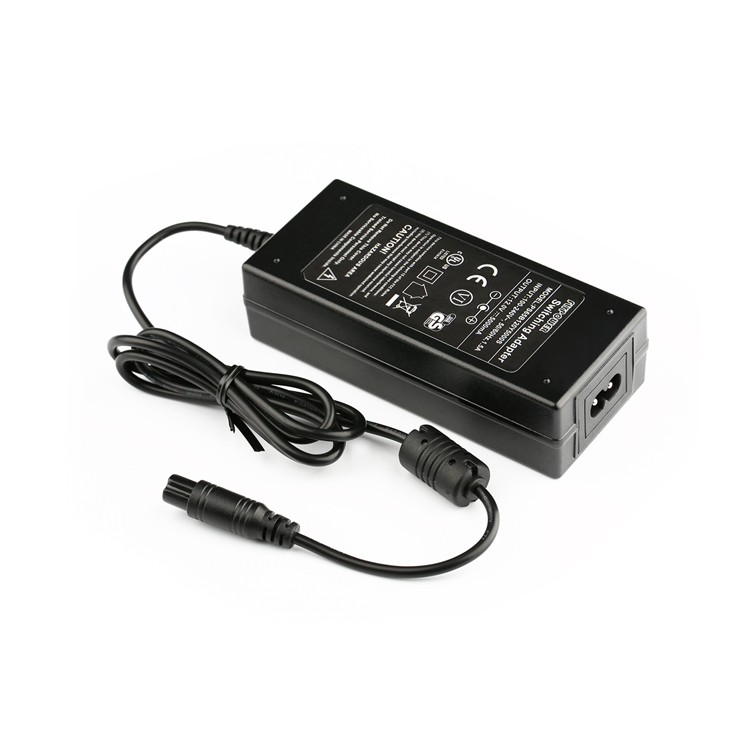

PS65DxxxYyyyyH/S (xxx=240-480; yyyy=0100-2700) | 100-240~,50/60Hz 1.5A | 24-48VDC | 100-2700mA | ＜300mVp-p | 65W | DC line | universal | CB, CE, GS, UL, FCC, CCC, SAA, RCM, PSE, KC, BSMI |

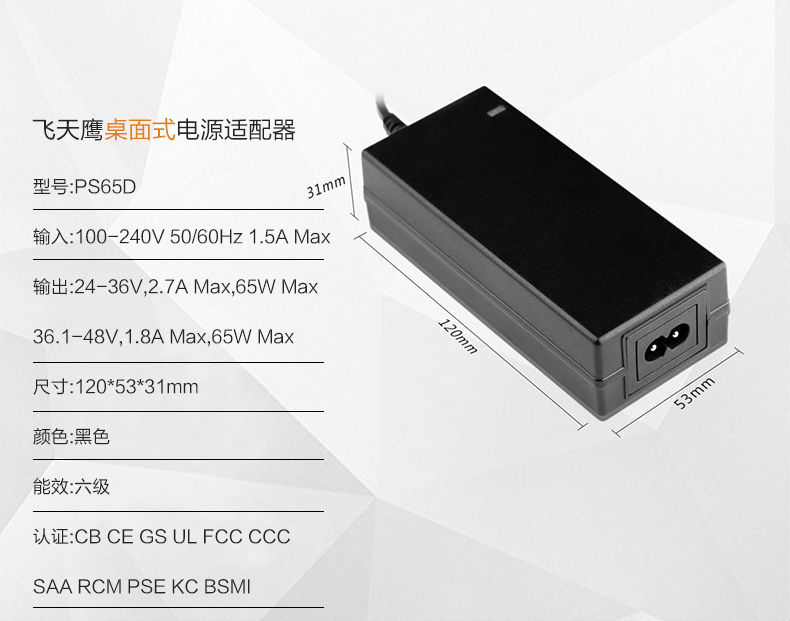

Outsidedrawing
|
L*W*H:120.0*53.0*31.0mm
Specification | 1PCS N.W(Kgs) | PCS/CTN | Size(mm) | N.W(kgs) | G.W(kgs) |
PS65DxxxYyyyyH/S (xxx=240-480; yyyy=0100-2700) | 0.318 | 36 | 450X400X180 | 11.5 | 12.5 |
Packing:PEbag or white box
Features
AC input voltage:AC100-240V 50/60Hz
Input current:1.5A（max）
Output voltage:24-48VDC
Output current:100-2700mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:300mVp-p max
Efficiency level:VI
Safety standard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60335-1; IEC/EN61558-2-16
Safety Index:
Insulation resistors:50MΩ（at 500VDC）
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM PSE KC BSMI VI
Balance car (also called inmotion, segway,)
Twist car, scooter, wheelbarrow etc.
