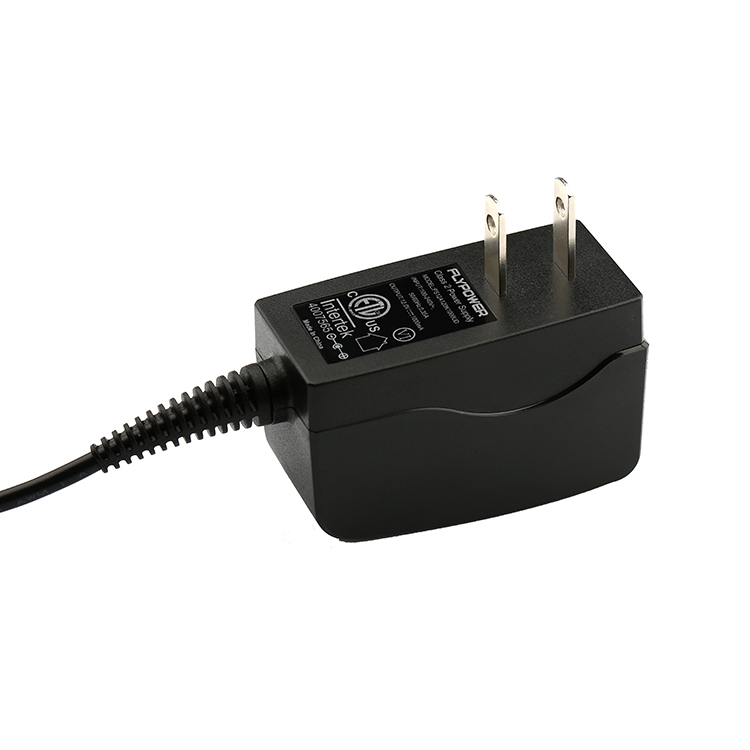

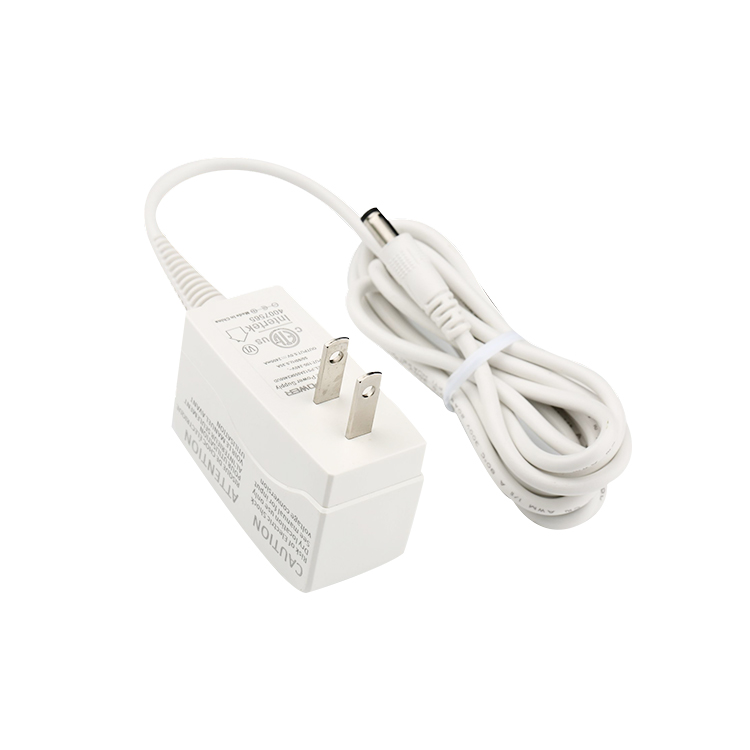

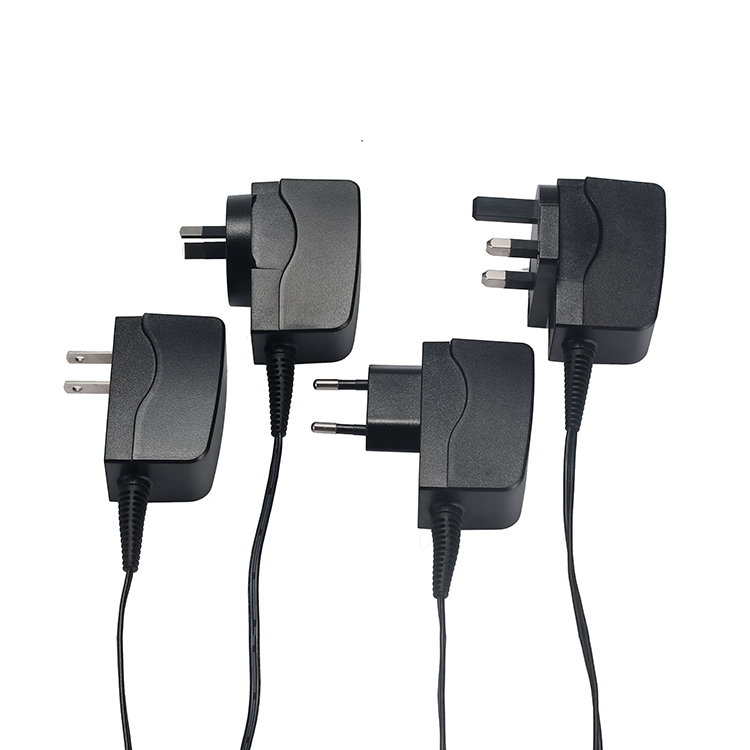

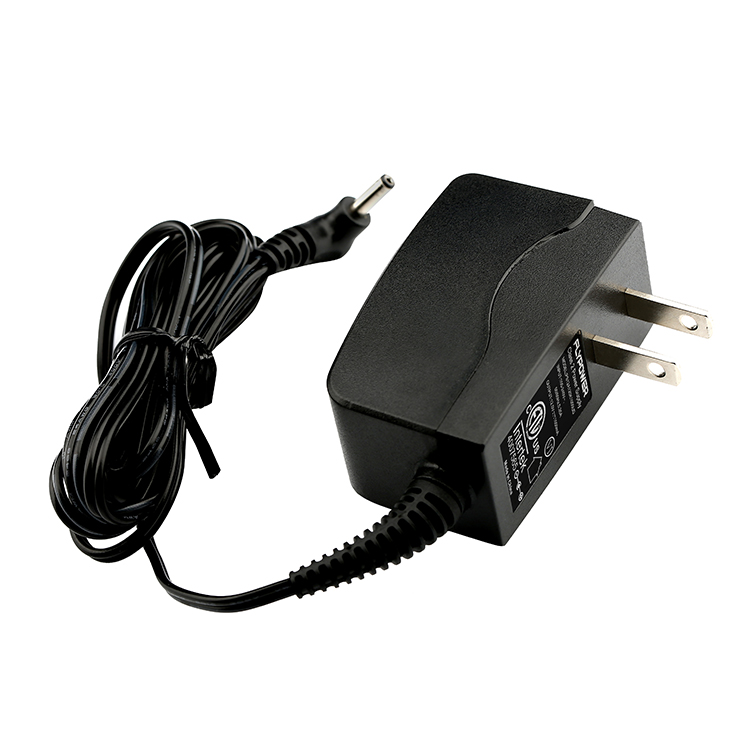

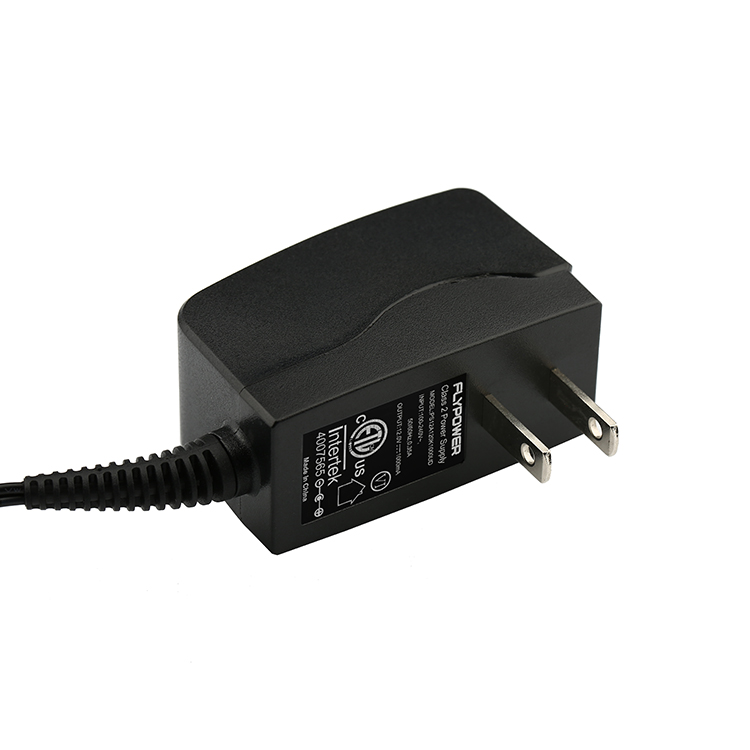

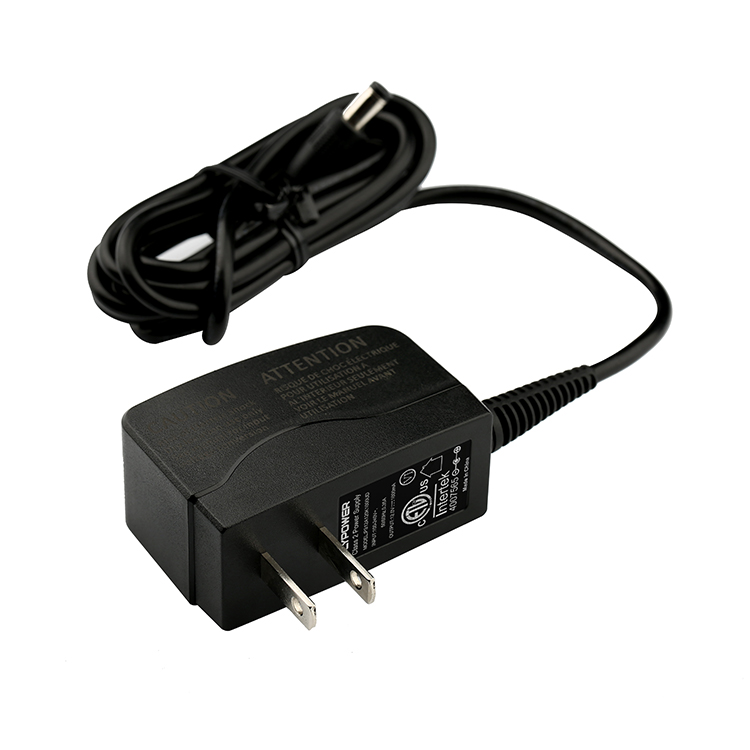

5V2A UL small home appliances power supply(with line)
5V2A UL small home appliances power supply(with line)
Model:PSJ12A(10W)
Efficiency level:VI
Output voltage:4-6VDC/9-13VDC/18-24 VDC
Output current:0.1-2.4A(max)
Output ripple &noise:100mVp-p(max)
Safety standard:UL1310;FCC Part 15 Subpart B Class B IEC/EN61558; IEC/EN60335; EN60950; EN55032;EN55022;EN55014
GB4943.1-2011;GB9254-2008;GB17625.1-2012
GB4706.1-2005;GB2099.1-2008
GB4343.1-2009;GB4343.2-2009
GB17625.1-2012; GB17625.2-2007
J60335-1(H27); J60335-2-29(H27); J3000(H25); J55014-1(H27)
CNS14336-1; CNS13438
认证:CB CE GS ETL FCC CCC CQC PSE SAA RCM KC BSMI VI
  1. Details
  2. Parameter
  3. Applications

Features

AC input voltage:AC100-240V 50/60Hz

Input current:0.35A(max)

Output voltage:4-6VDC; 9-13VDC;18-24 VDC

Output current:100-2400mA

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:100mVp-p max

Efficiency level:VI

Safety standard:

UL1310;FCC Part 15 Subpart B Class B

IEC/EN61558; IEC/EN60335; EN60950; EN55032;EN55022;EN55014

GB4943.1-2011; GB9254-2008; GB17625.1-2012

GB4706.1-2005; GB2099.1-2008; GB4343.1-2009;GB4343.2-2009

GB17625.1-2012; GB17625.2-2007

J60335-1(H27); J60335-2-29(H27); J3000(H25); J55014-1(H27)

CNS14336-1; CNS13438

Safety Index:

Insulation resistors:50MΩ(at 500VDC)

Over current protection

Short circuit protection

Over voltage protection

Environmental Requirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB CE GS ETL FCC CCC CQC PSE SAA RCM KC BSMI VI

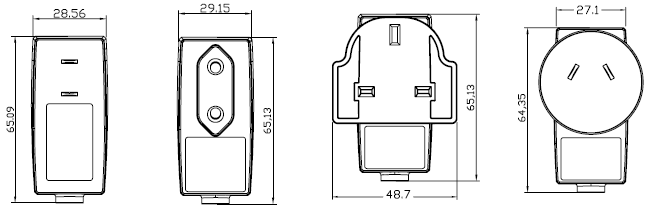

Outside drawing




Features

AC input voltage:AC100-240V 50/60Hz

Input current:0.35A(max)

Output voltage:4-6VDC; 9-13VDC;18-24 VDC

Output current:100-2400mA

Input inrush current:60A(max)

Hi-pot test:3000Vac 10mA 3S

Output ripple &noise:100mVp-p max

Efficiency level:VI

Safety standard:

UL1310;FCC Part 15 Subpart B Class B

IEC/EN61558; IEC/EN60335; EN60950; EN55032;EN55022;EN55014

GB4943.1-2011; GB9254-2008; GB17625.1-2012

GB4706.1-2005; GB2099.1-2008; GB4343.1-2009;GB4343.2-2009

GB17625.1-2012; GB17625.2-2007

J60335-1(H27); J60335-2-29(H27); J3000(H25); J55014-1(H27)

CNS14336-1; CNS13438

Safety Index:

Insulation resistors:50MΩ(at 500VDC)

Over current protection

Short circuit protection

Over voltage protection

Environmental Requirements

Operating temperature:-5°C-+40°C.

Storage temperature: -20°C-+60°C.

Operating humidity: 30%-85%.

Storage humidity: 10%-95%.

Certificate:

CB CE GS ETL FCC CCC CQC PSE SAA RCM KC BSMI VI

Outside drawing



Sound box, electric toothbrush, decanter, sweeping machine, sprayer, whitening machine,  window treasure, rag machine, plant lamp, humidifier, aromatherapy machine
