Features
AC input voltage:AC100-240V 50/60Hz
Input current:0.35A（max）
Output voltage:5VDC
Output current:100-2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:120mVp-p max
Efficiencylevel:VI
Safetystandard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60950; EN55032;EN55022
SafetyIndex:
Insulationresistors:
50MΩ（at 500VDC）
Overcurrent protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CE GS UL FCC CCC PSE KC BSMI VI
Modellist and rating:
Model | Input rating | Output volt | Output current | Ripple & Noise | Max power output | Output connector | Market | Approval |
PS10E050KyyyywU (yyyy=0100-2000) | 100-240~,50/60Hz, 0.35A | 5VDC | 100-2000mA | ＜120mVp-p | 10.0W | USB | USA, China, Japan, Taiwan, EU, Korea, Brazil , ect | UL, FCC, CCC, PSE, KC, BSMI , CB,CE, GS,KC, |

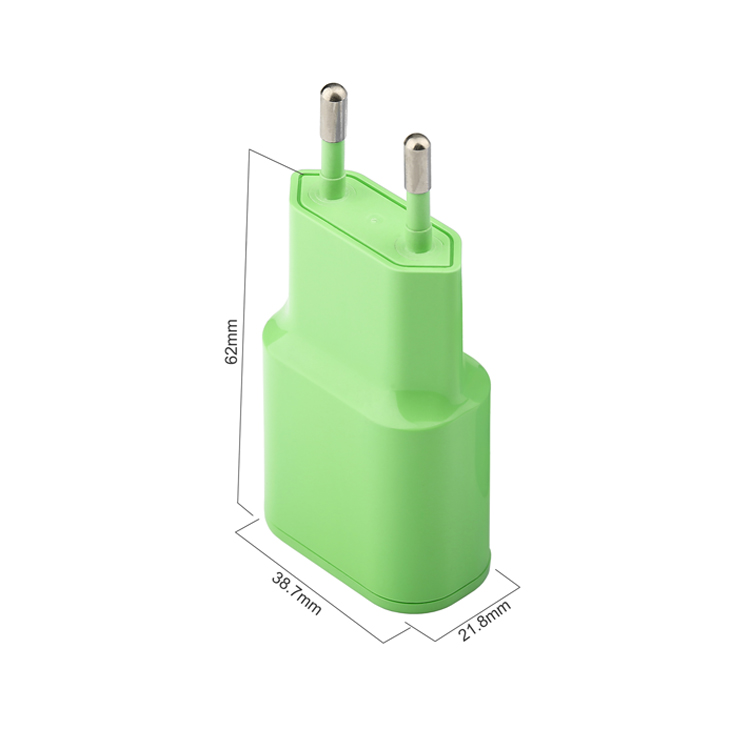

Outside drawing
Packing:PEbag or white box
Specification | 1PCS N.W(Kgs) | PCS/CTN | Size(mm) | N.W(kgs) | G.W(kgs) |
UU/CU/TU/JU | 0.038 | 450 | 470X435X210 | 15.5 | 16.5 |
EU/KU | 0.045 | 300 | 555X355X300 | 14 | 15 |
Features
AC input voltage:AC100-240V 50/60Hz
Input current:0.35A（max）
Output voltage:5VDC
Output current:100-2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:120mVp-p max
Efficiencylevel:VI
Safetystandard:
UL60950; FCC Part 15 Subpart B Class B
IEC/EN60950; EN55032;EN55022
SafetyIndex:
Insulationresistors:50MΩ（at 500VDC）
Overcurrent protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CE GS UL FCC CCC PSE KC BSMI VI
Modellist and rating:
Model | Input rating | Output volt | Output current | Ripple & Noise | Max power output | Output connector | Market | Approval |
PS10E050KyyyywU (yyyy=0100-2000) | 100-240~,50/60Hz, 0.35A | 5VDC | 100-2000mA | ＜120mVp-p | 10.0W | USB | USA, China, Japan, Taiwan, EU, Korea, Brazil , ect | UL, FCC, CCC, PSE, KC, BSMI , CB,CE, GS,KC, |
Outside drawing
Packing:PEbag or white box
Specification | 1PCS N.W(Kgs) | PCS/CTN | Size(mm) | N.W(kgs) | G.W(kgs) |
UU/CU/TU/JU | 0.038 | 450 | 470X435X210 | 15.5 | 16.5 |
EU/KU | 0.045 | 300 | 555X355X300 | 14 | 15 |
Small speaker box, small desk lamp, electric toothbrush, perfume machine, mini vacuum cleaners, washing hair machine,shaver, razor, face-wash instrument, beauty instrument, goggles, aromatherapy machine, humidifier, mosquito eradication lamp, Manicure machine,face cleaning machine, VR (3D glasses), plant growth lamp
