Features

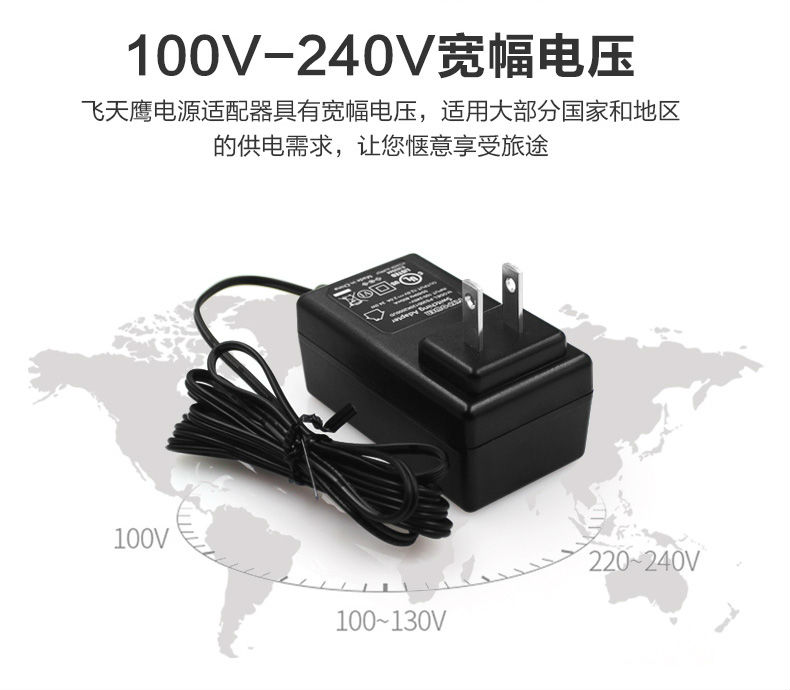

AC input voltage:AC100-240V 50/60Hz
Input current:0.8A(max)
Output voltage: 12-15VDC; 18-24VDC
Output current:100-2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:150mVp-p max

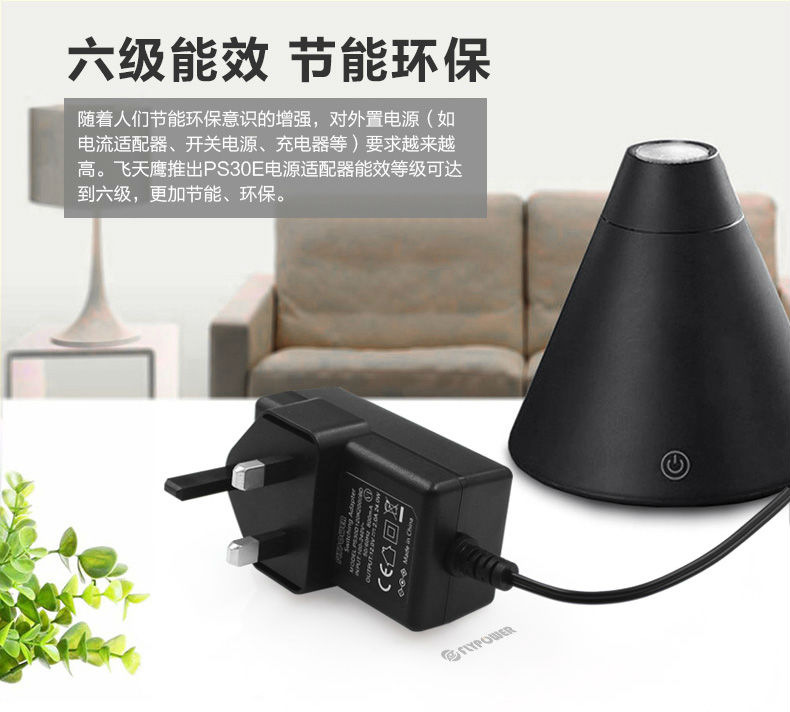

Efficiency level:VI
Safety standard:
GB4943.1-2011; GB9254-2008; GB17625.1-2012
GB4706.1-2005; GB2099.1-2008;
Safety Index:
Insulation resistors:50MΩ(at 500VDC)

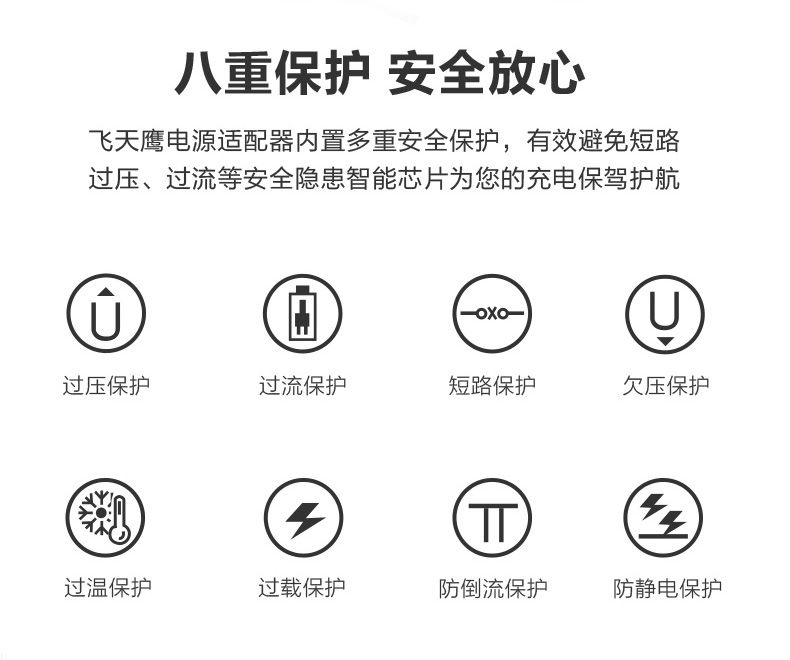

Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:

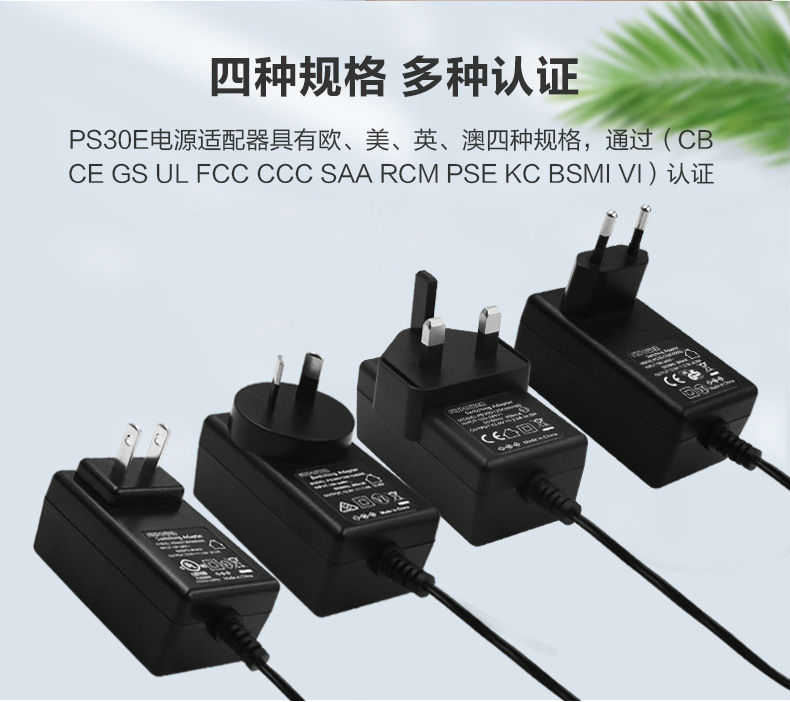

CB CE GS UL FCC CCC SAA RCM UL PSE KC BSMI VI

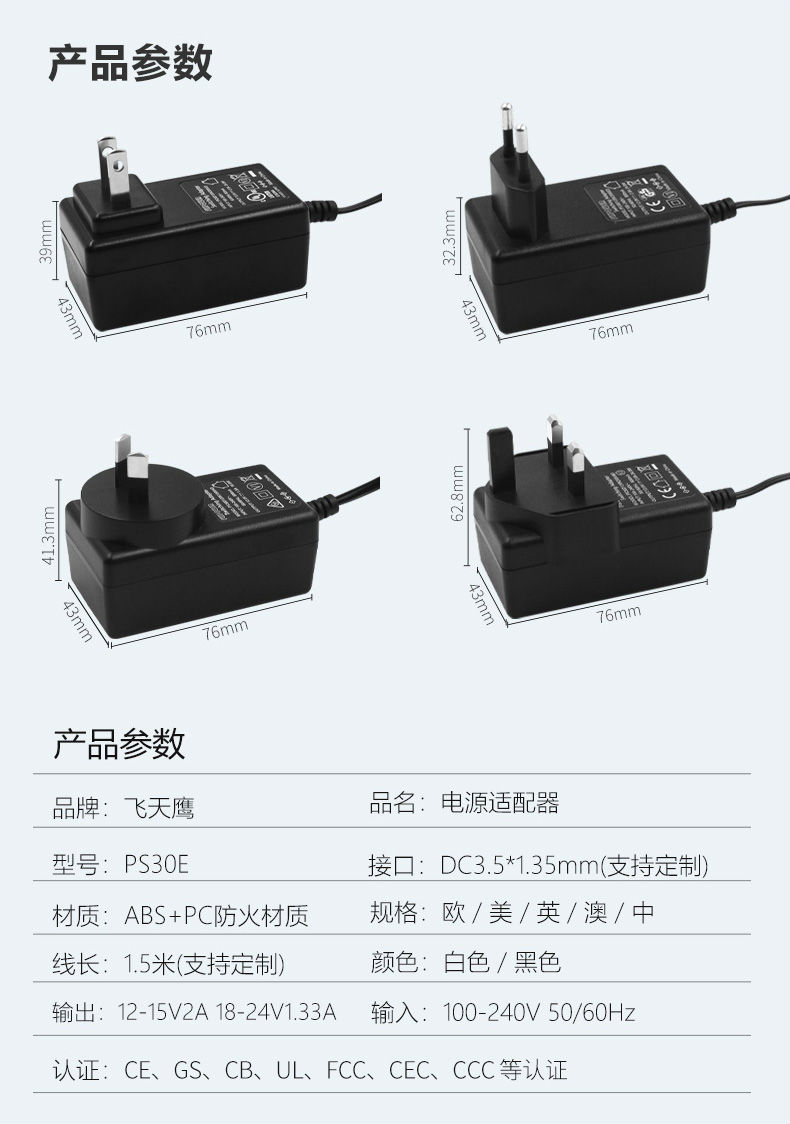

Outside drawing
Features
AC input voltage:AC100-240V 50/60Hz
Input current:0.8A(max)
Output voltage: 12-15VDC; 18-24VDC
Output current:100-2000mA
Input inrush current:60A(max)
Hi-pot test:3000Vac 10mA 3S
Output ripple &noise:150mVp-p max
Efficiency level:VI
Safety standard:
GB4943.1-2011; GB9254-2008; GB17625.1-2012
GB4706.1-2005; GB2099.1-2008;
Safety Index:
Insulation resistors:50MΩ(at 500VDC)
Over current protection
Short circuit protection
Over voltage protection
Environmental Requirements
Operating temperature:-5°C-+40°C.
Storage temperature: -20°C-+60°C.
Operating humidity: 30%-85%.
Storage humidity: 10%-95%.
Certificate:
CB CE GS UL FCC CCC SAA RCM UL PSE KC BSMI VI
Outside drawing
3D printer, stereo, small appliances, magnesium lamp, battery charger, massor, aromatherapy machine, humidifier, beauty massage instrument, sweeping machine
